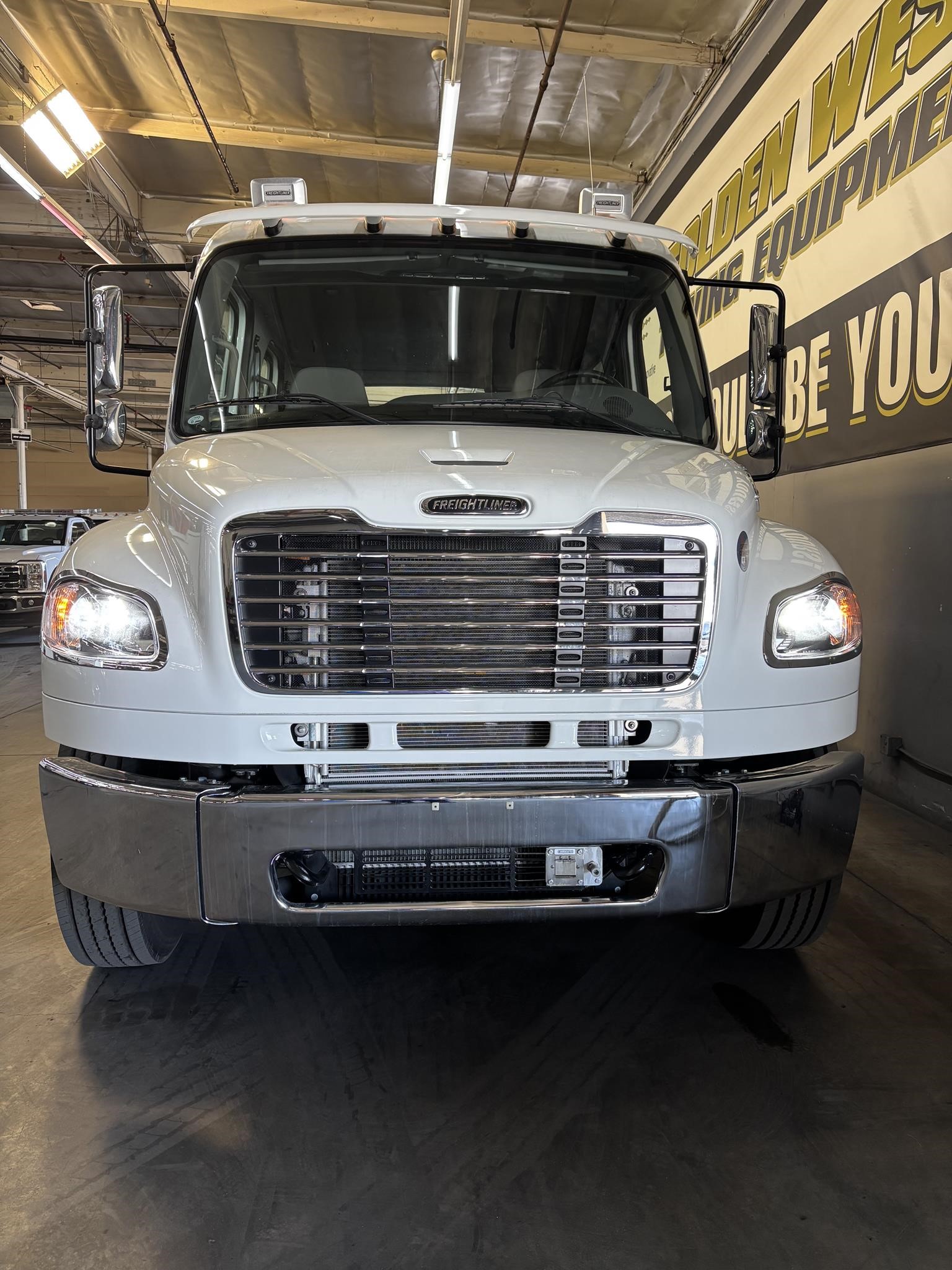

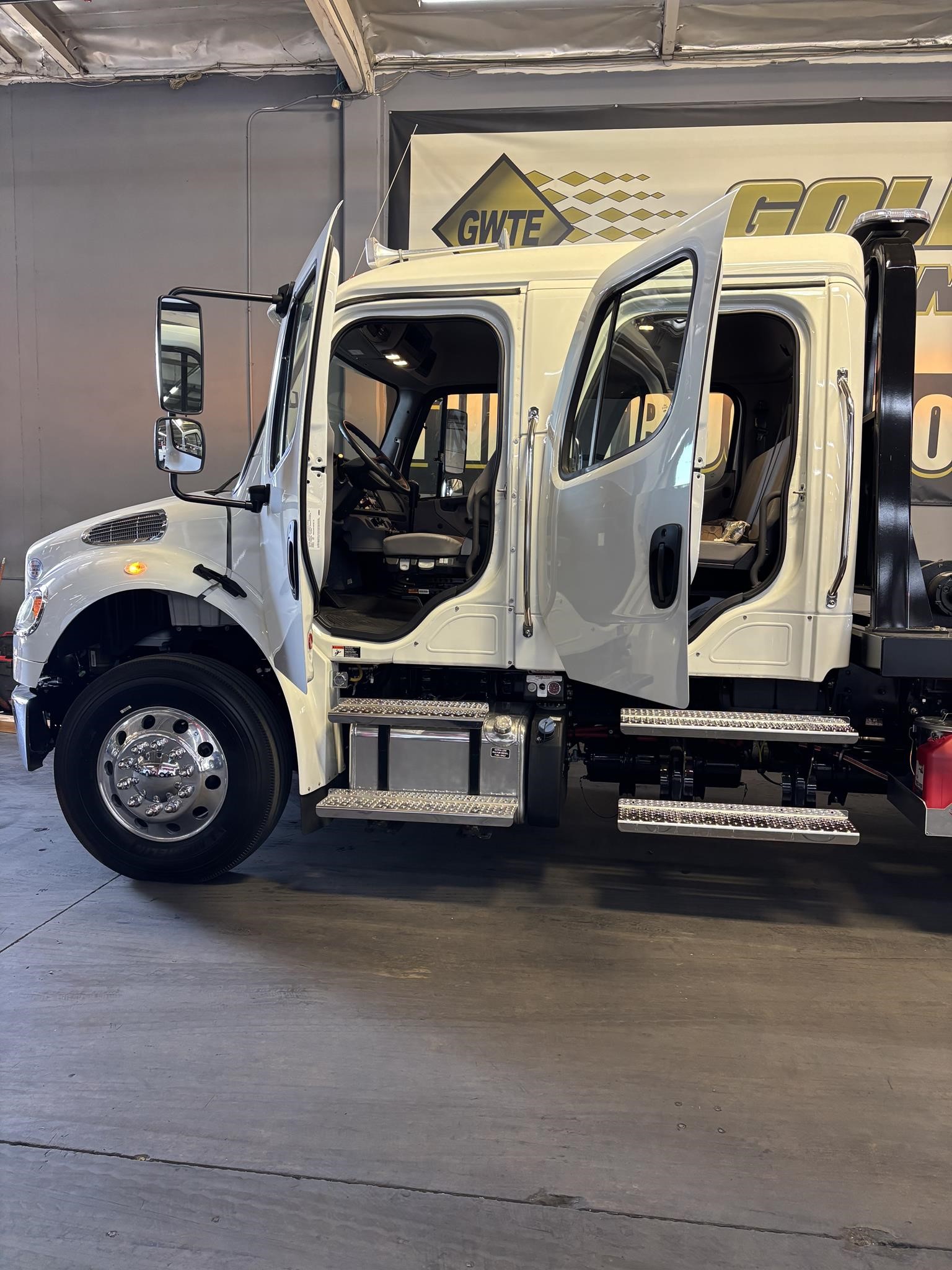

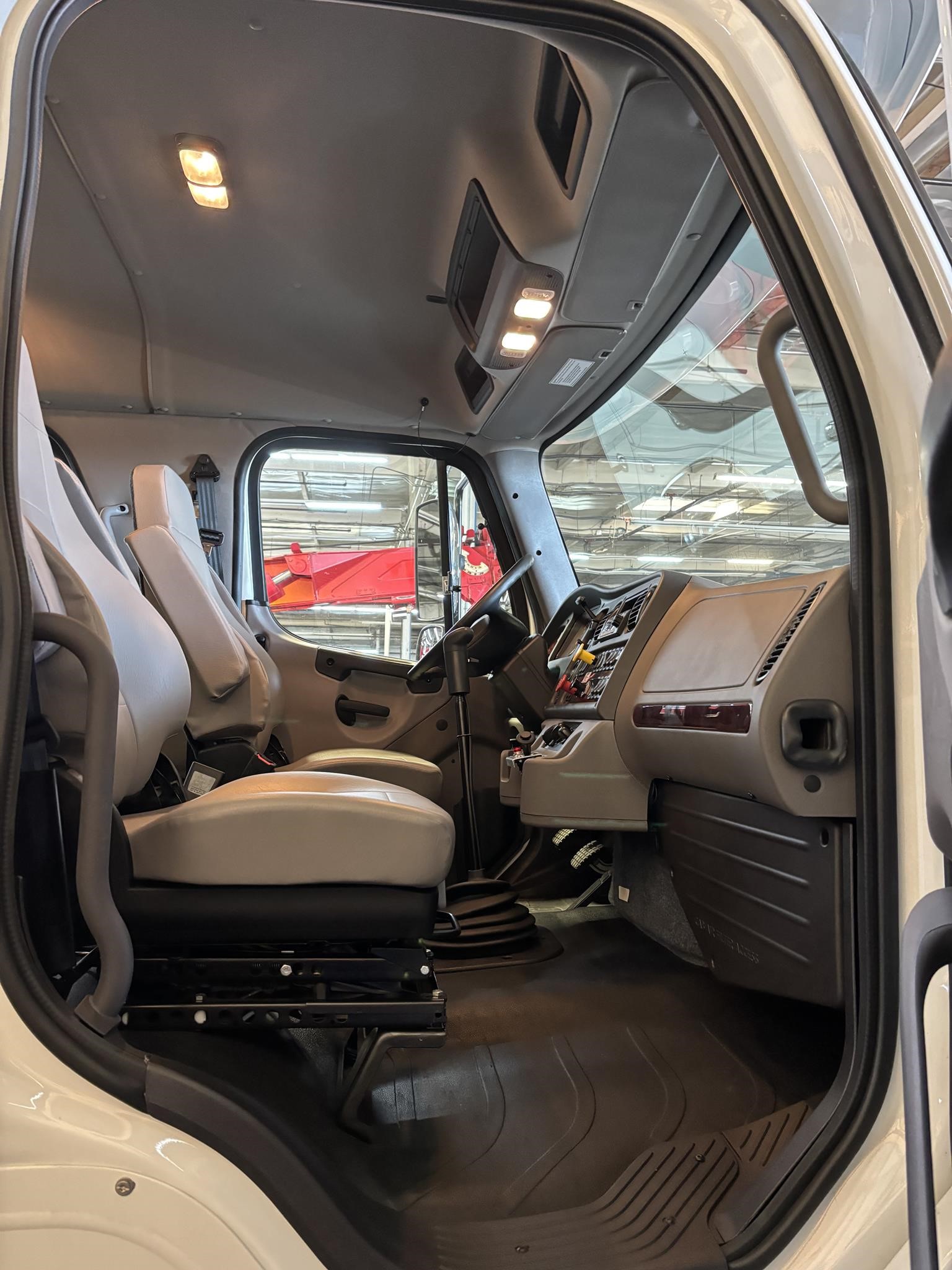

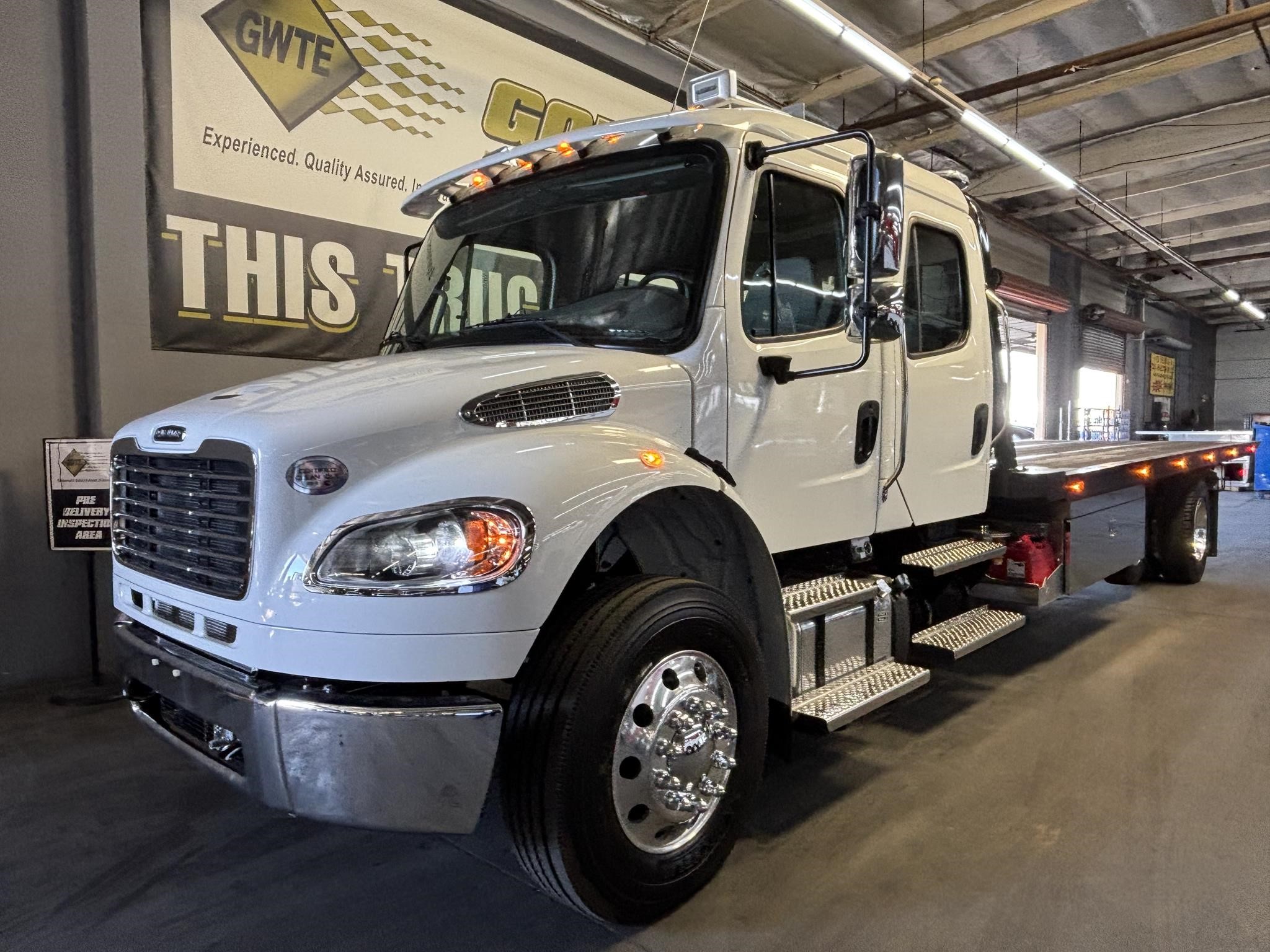

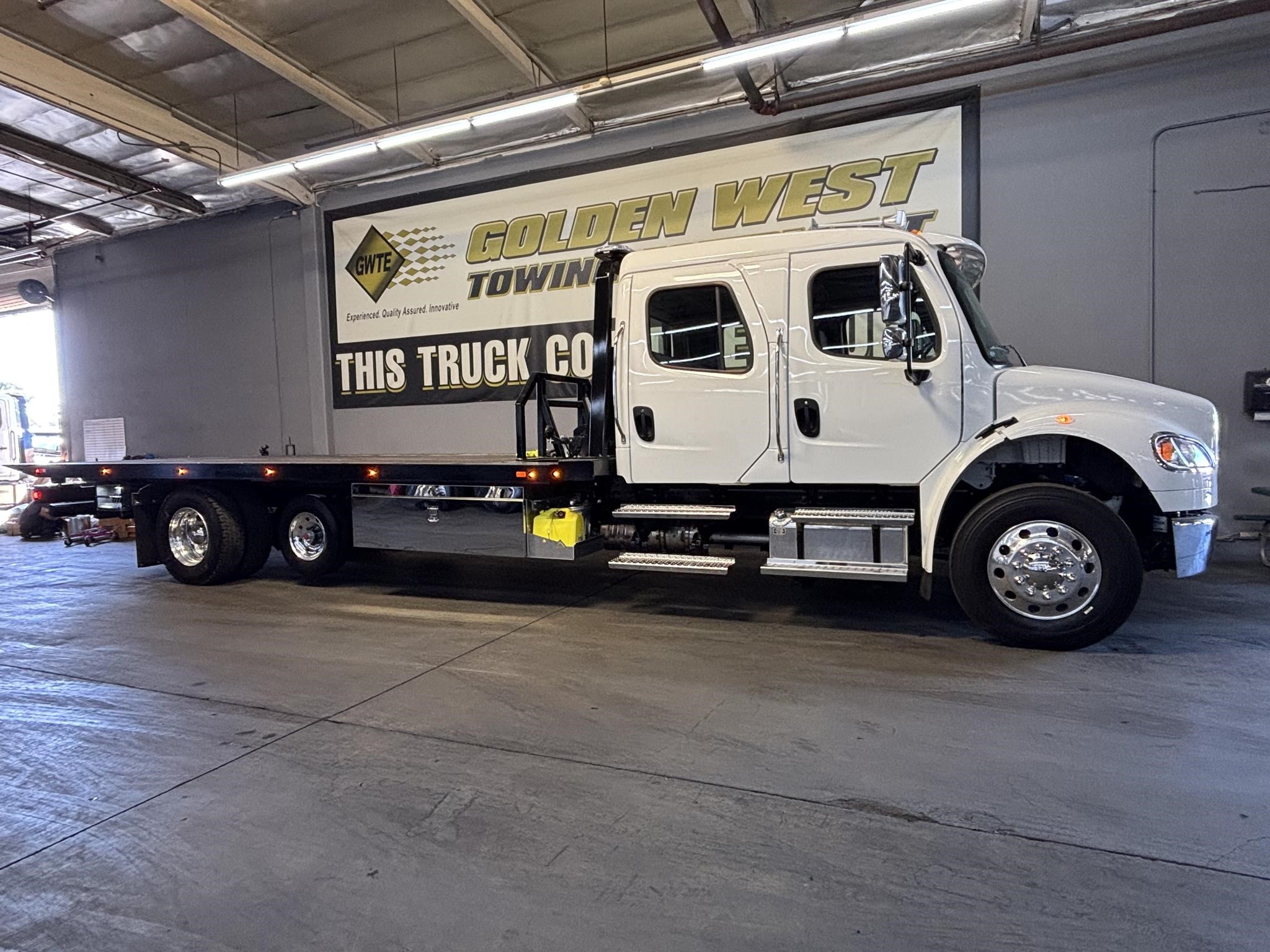

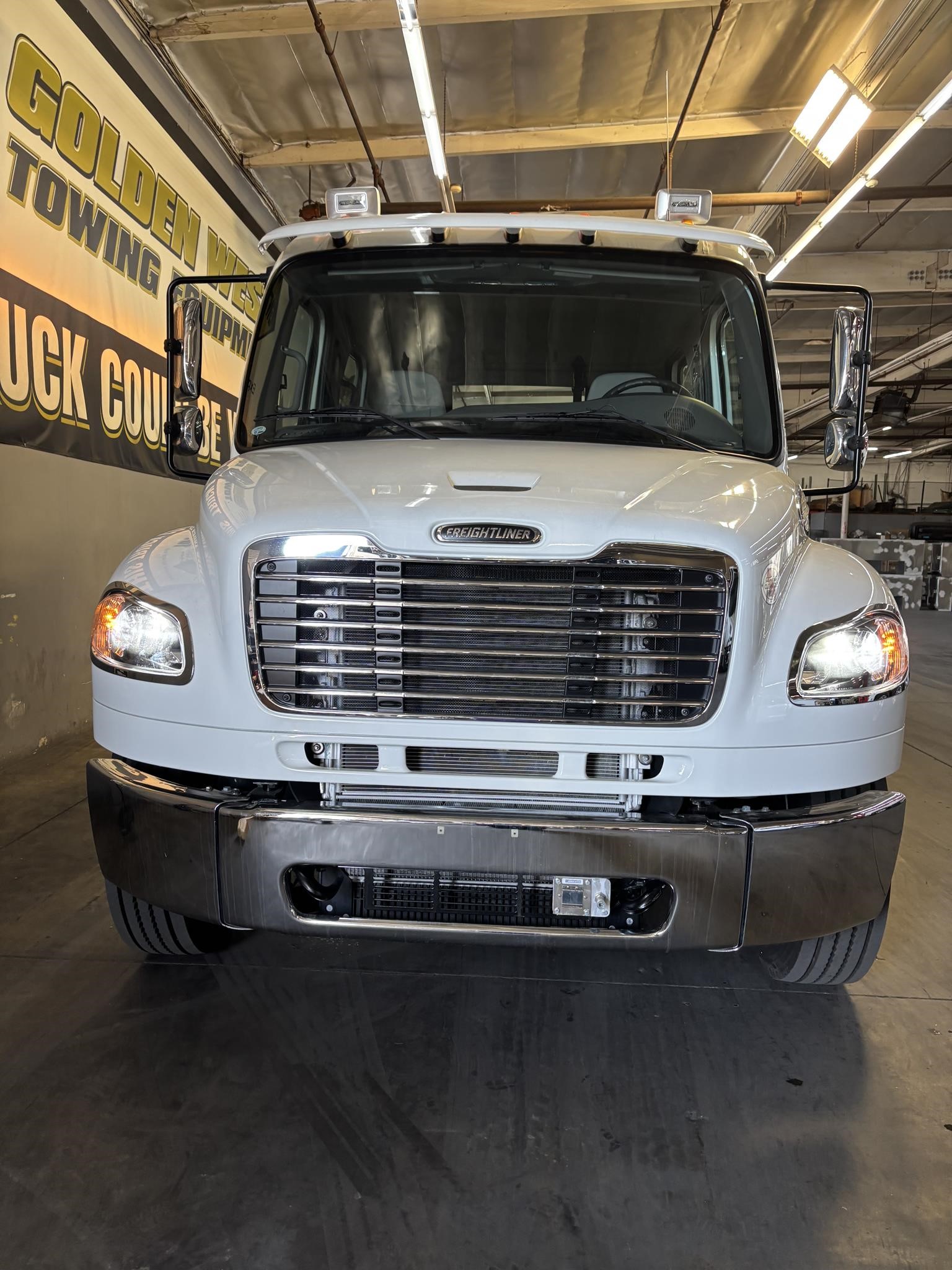

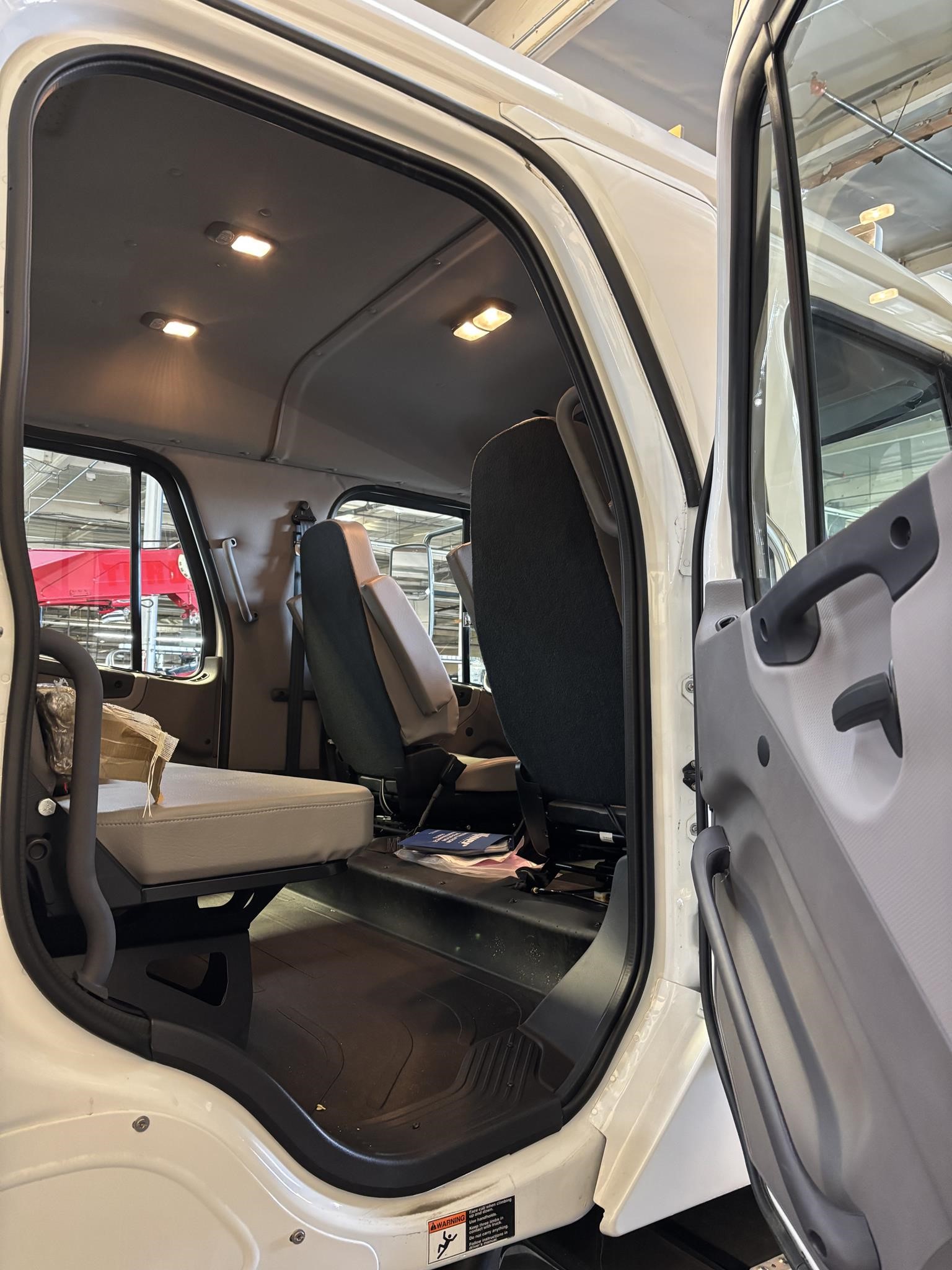

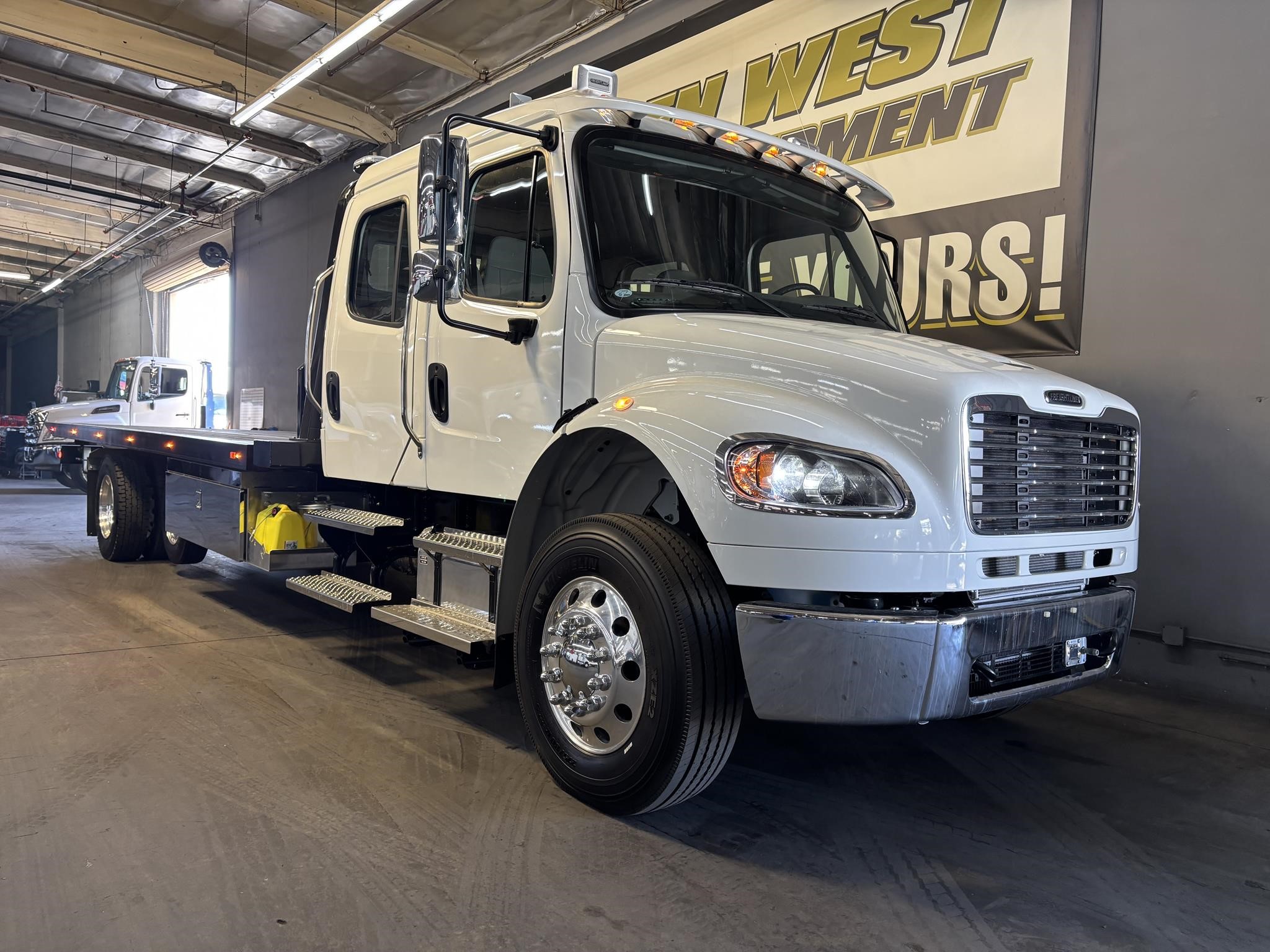

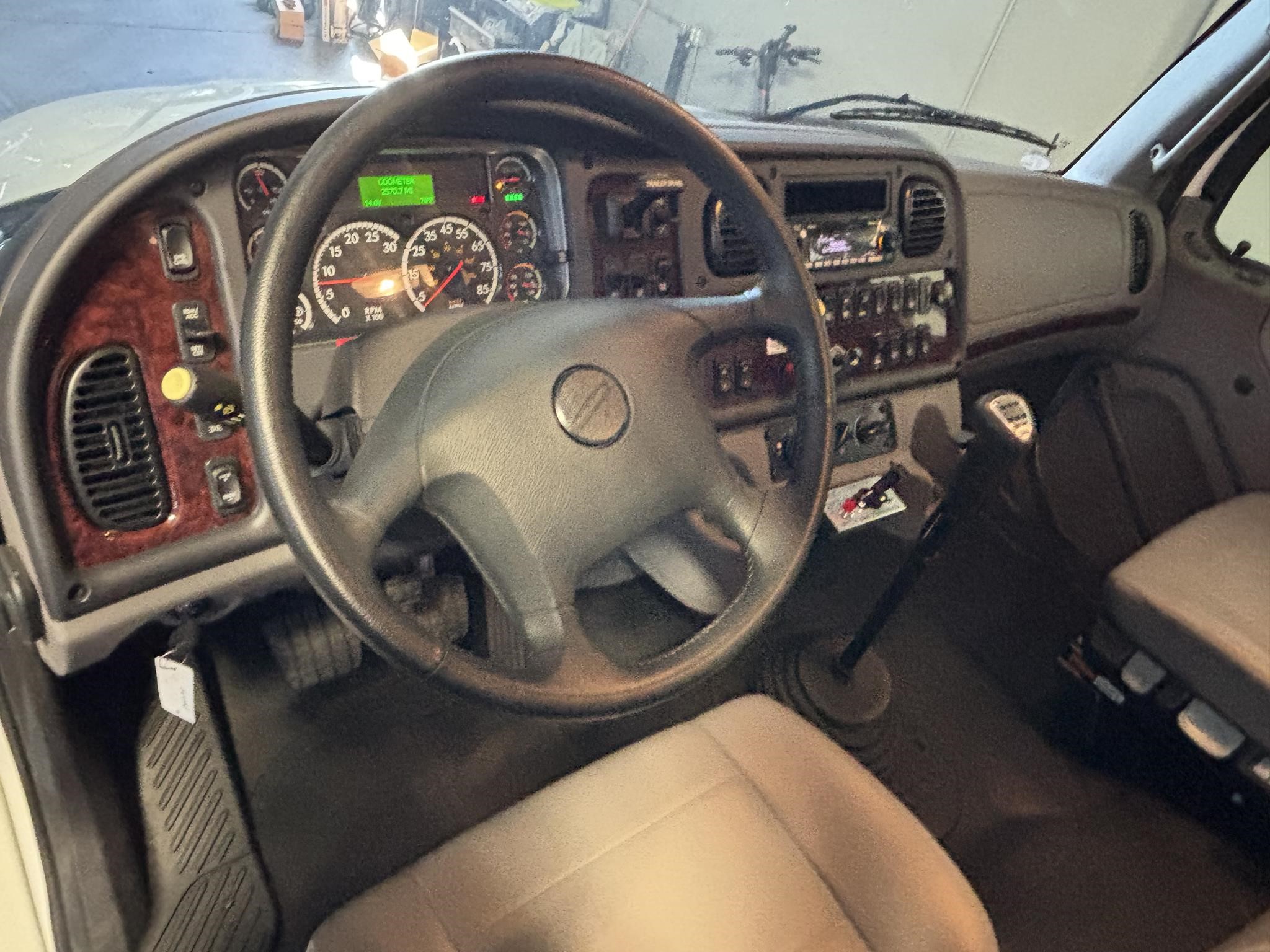

2024 FRTR M-2 154" BBC Cab High Roof. 360HP L9 1150lbs or Torque, EATON FULLER FRO-14210C 10 speed with overdrive. 3 Stage C Brake- Jacobs. 12,000lb front axle. 12,000lb front suspension. 21,000lb Rear axle, 4.11 Rear End ratio. Driver-controlled locking rear differential. block heater. Air dryer. 275/80R 22.5 Tires. Aluminum wheels. Chrome 3-piece bumper. Dual grab handles side of cab. Premium Springhausen highback air Suspension driver and Passenger seats with 2 Air lumbar, Integrated cushion extension, with Arm rests, Tilt & & adjustable. Folding Rear bench seat. Idle up, Cruise control. Air cab mounts.Dual 26" Hadley Air Horns. LED headlights, Heated Power Mirrors. Composite Sunvisor, RH* LH Operating wing windows. Power door locks. Tilt & Telescoping wheel. Woodgrain dash option. dash mounted PTO Switch. AM/FM/WB world tuner radio with sirus XM bluetooth ipod interface, USB & auxilary inputs dash mounted radio, 2 speakers in cab.

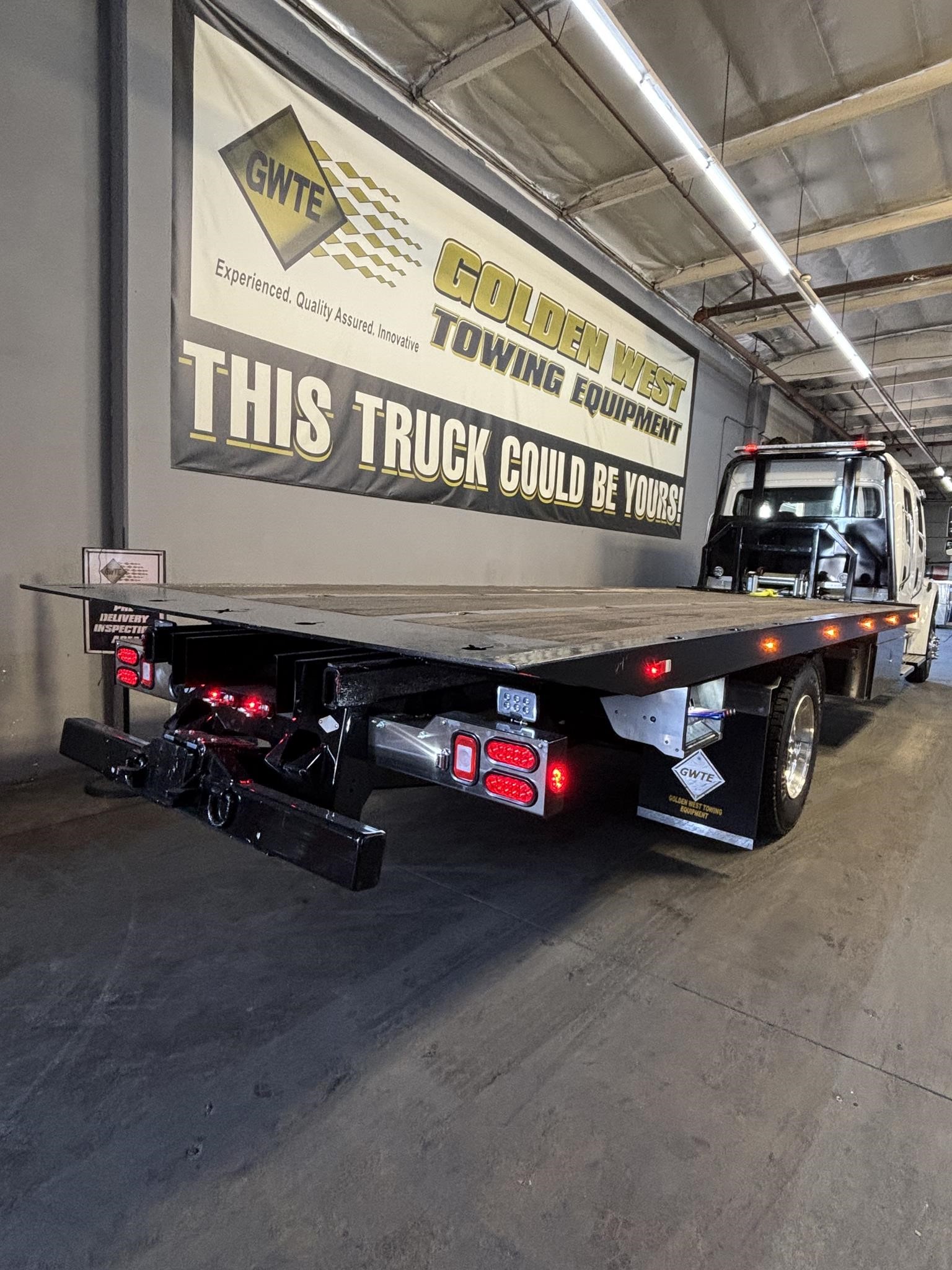

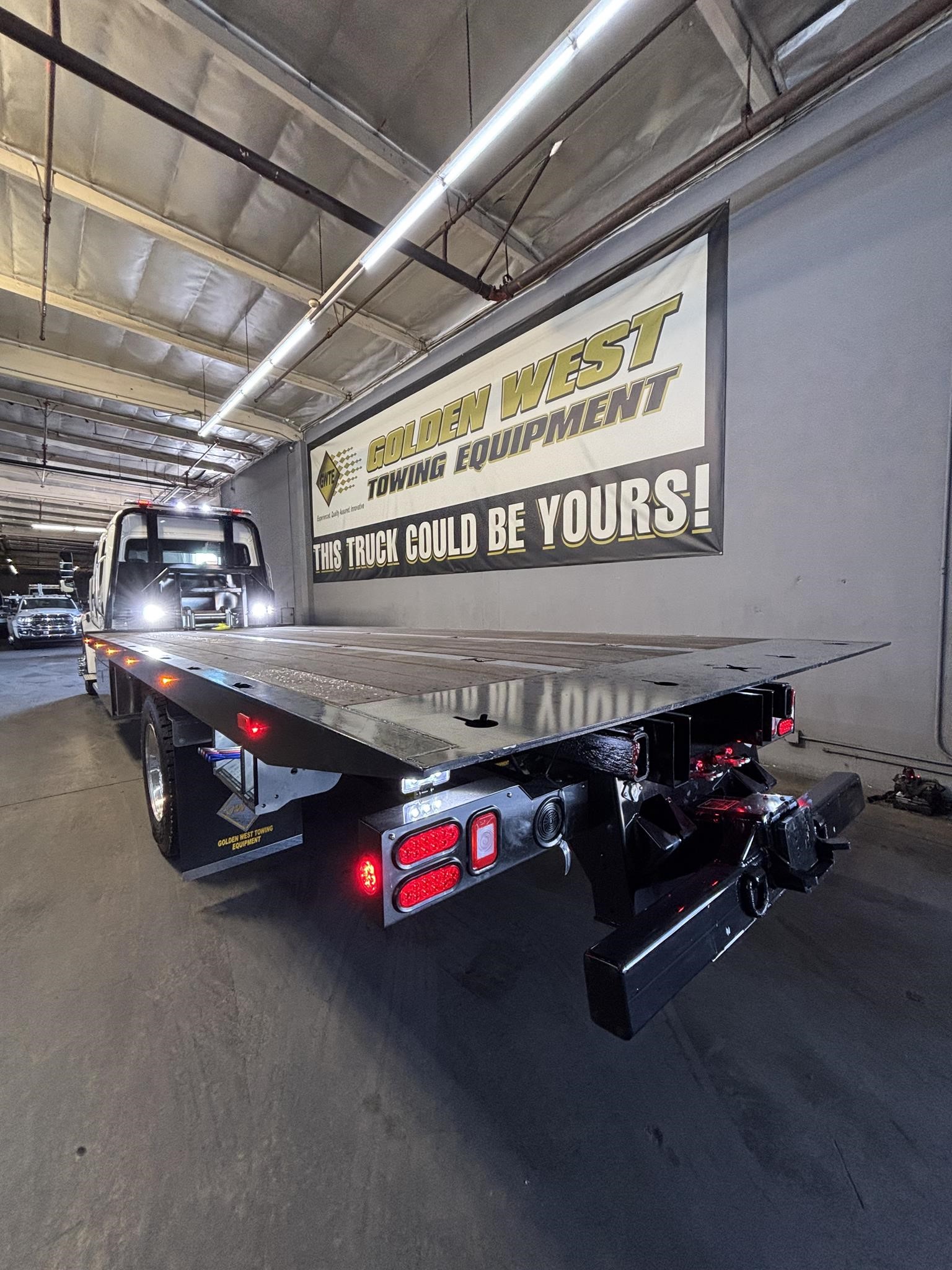

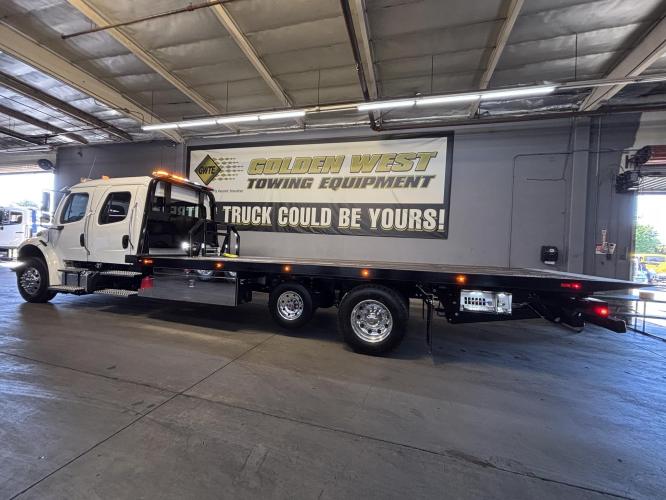

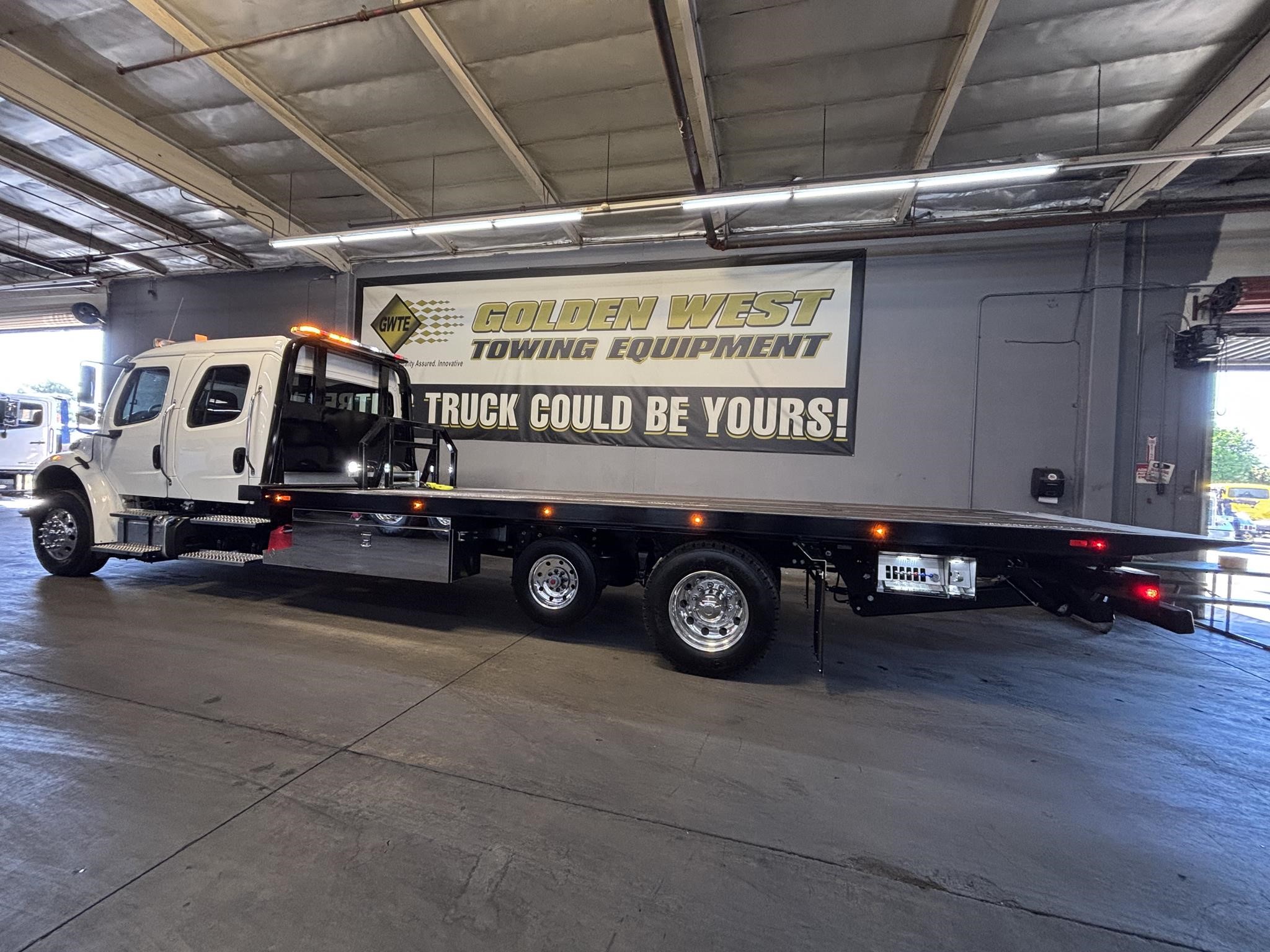

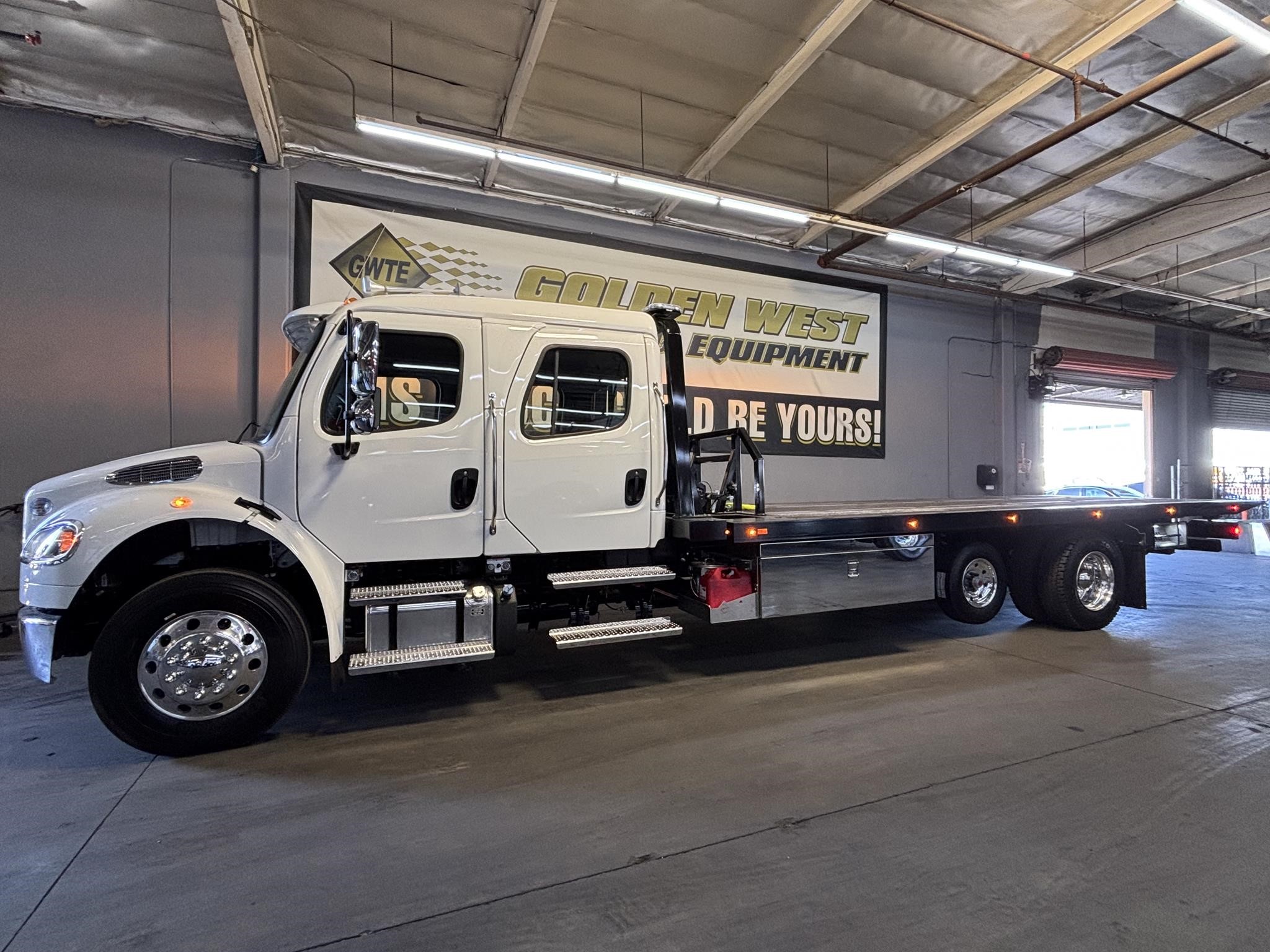

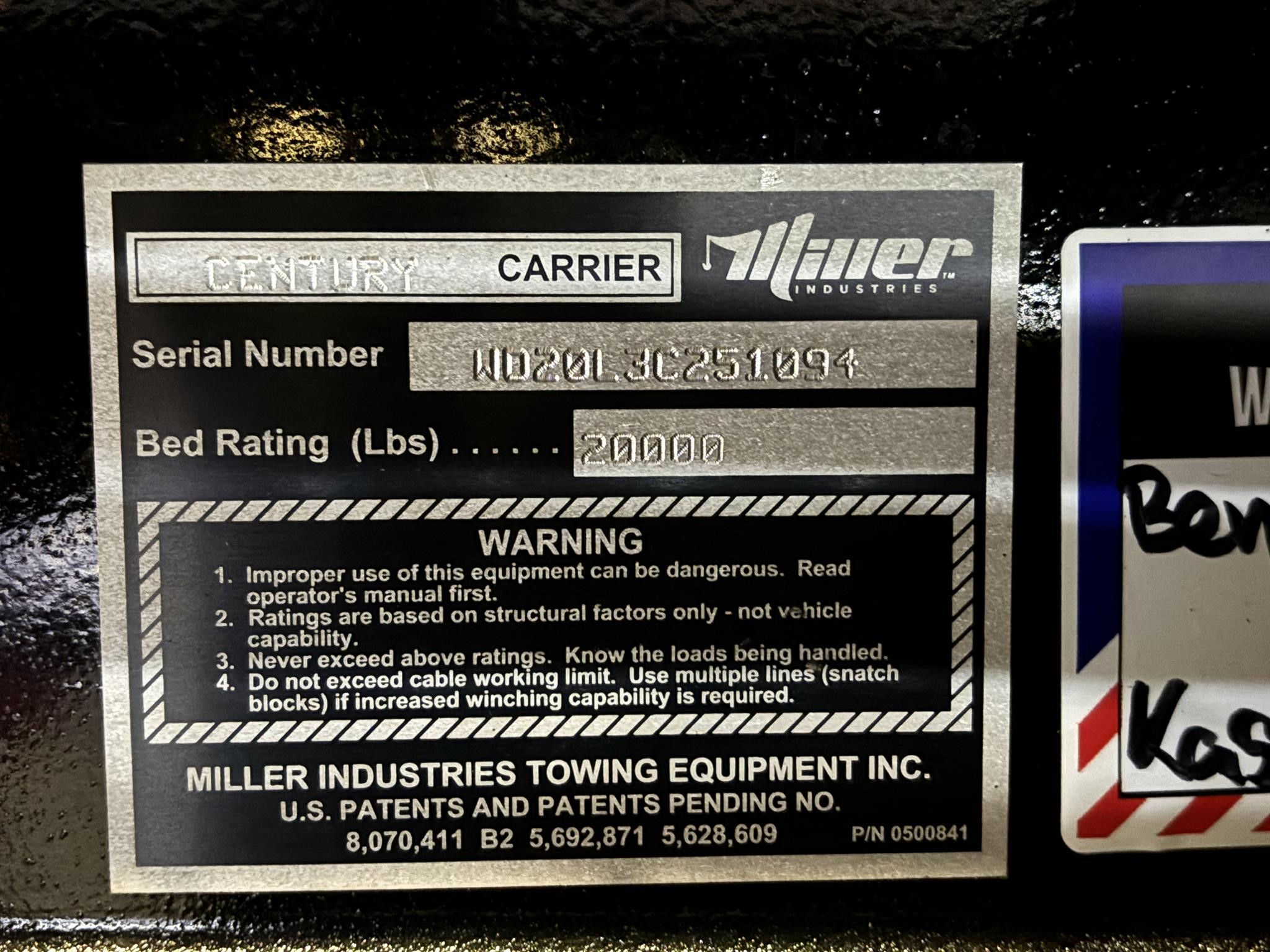

LCG Series 20, 24' Deck - Load Rating
20,000 lbs. Deck Height Above Chassis Frame Steel 7 3/4” Deck Height Above Chassis Frame, Wood ,8 3/4”. Platform Length, 24’,
Platform Floorplate Thickness, 3/16” , Platform Width, Outside,102”. Platform Width. Inside*. 97”. Platform Mainbeam. 6” I-Beam, Crossmembers, 3” x 3” Corten Tube, Crossmember Spacing, 8” on Center, Body Sides 6” x 4” x 3/8” Angle

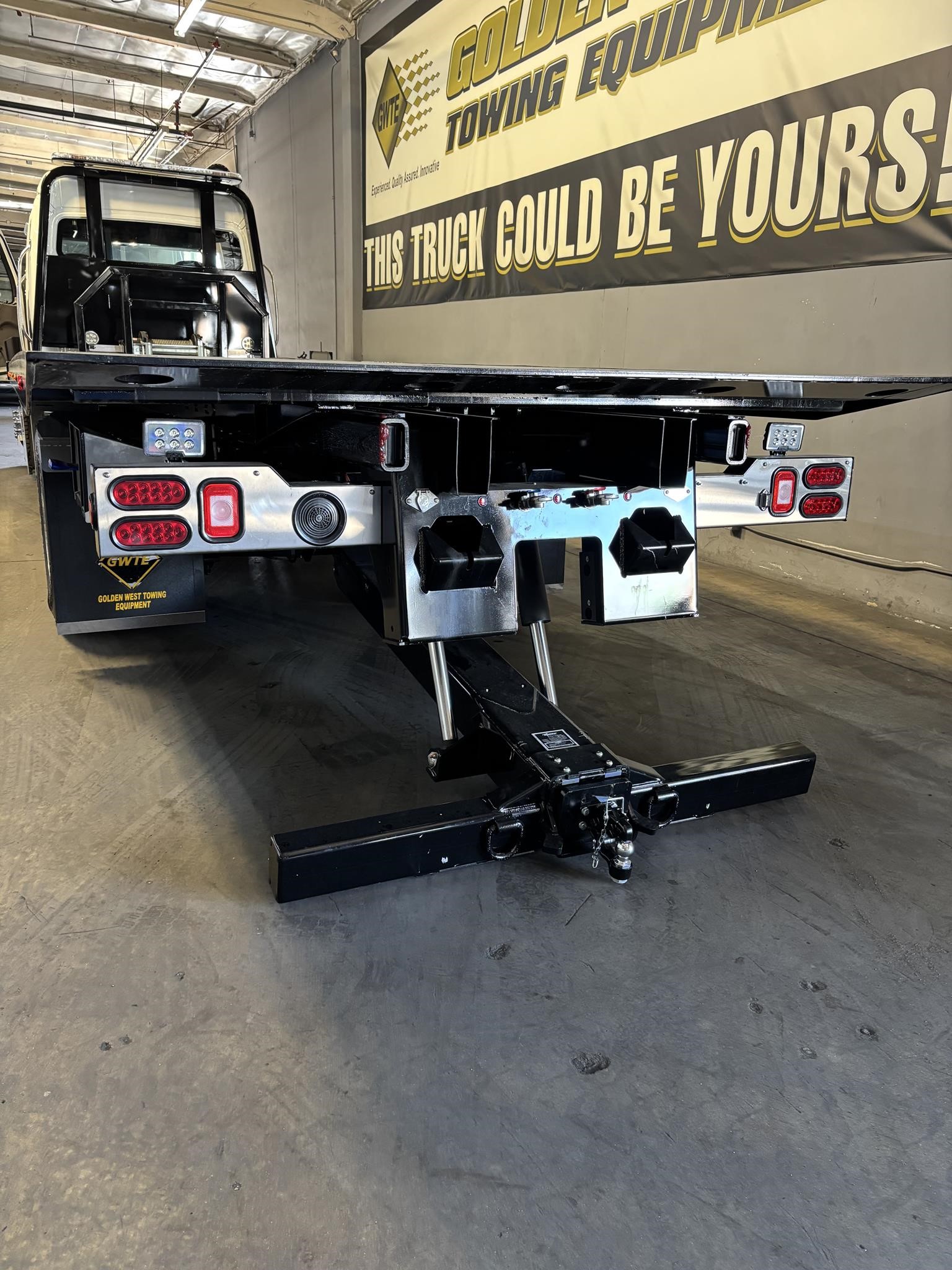

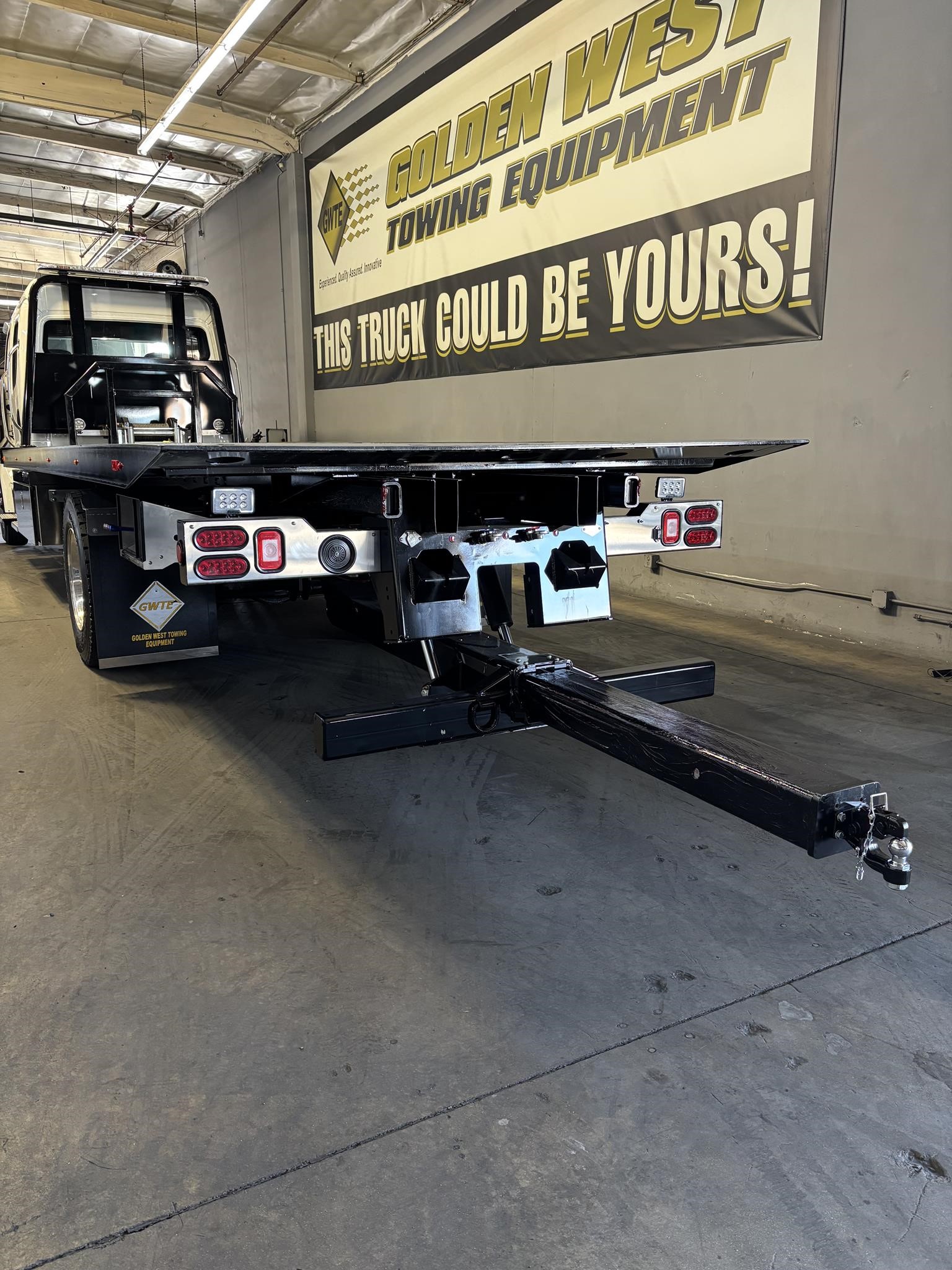

Subframe Rails. 5” x 3” x 1/2” H.S. Tube, Cable ,12,000 lbs. Bed Tilt Cylinders ,4” Bore ,Bed Extension Cylinders (2) ,3 1/2” x 120” Stroke ,Wheel Lift Rating (Extended) ,66" - ,4,000 lbs.Wheel Lift Rating (Extended), Tow Rating
10,000 lbs. – 20,000 lbs. Full Length Subframe, Dual Bed Extension Cylinders, Full Length Subframe Wear Pads, Roller Bed Positive Lock-down, Painted w/Black Acrylic Urethane, Dual Illuminated Controls, Driver & Passenger Side Chain Trays

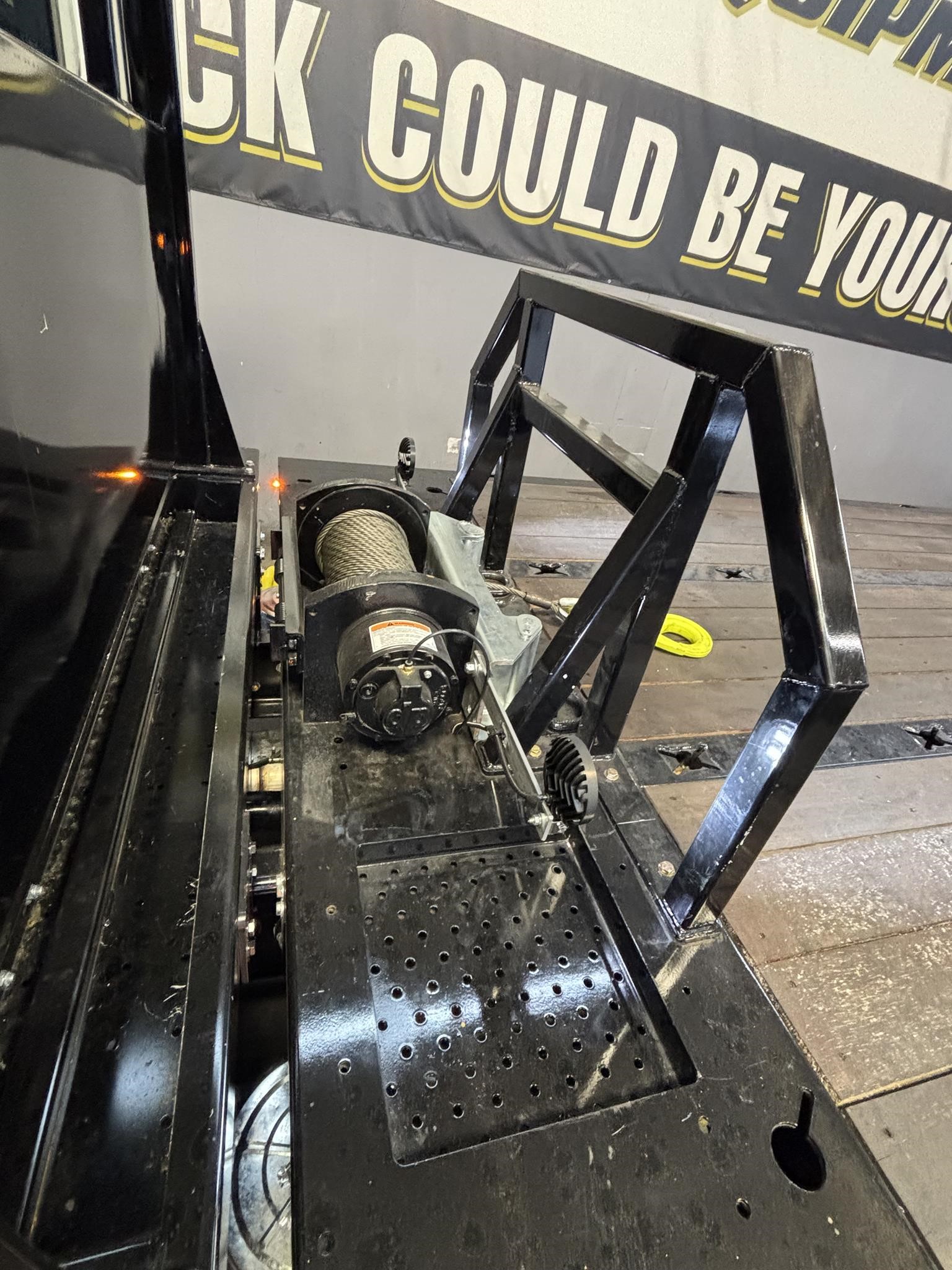

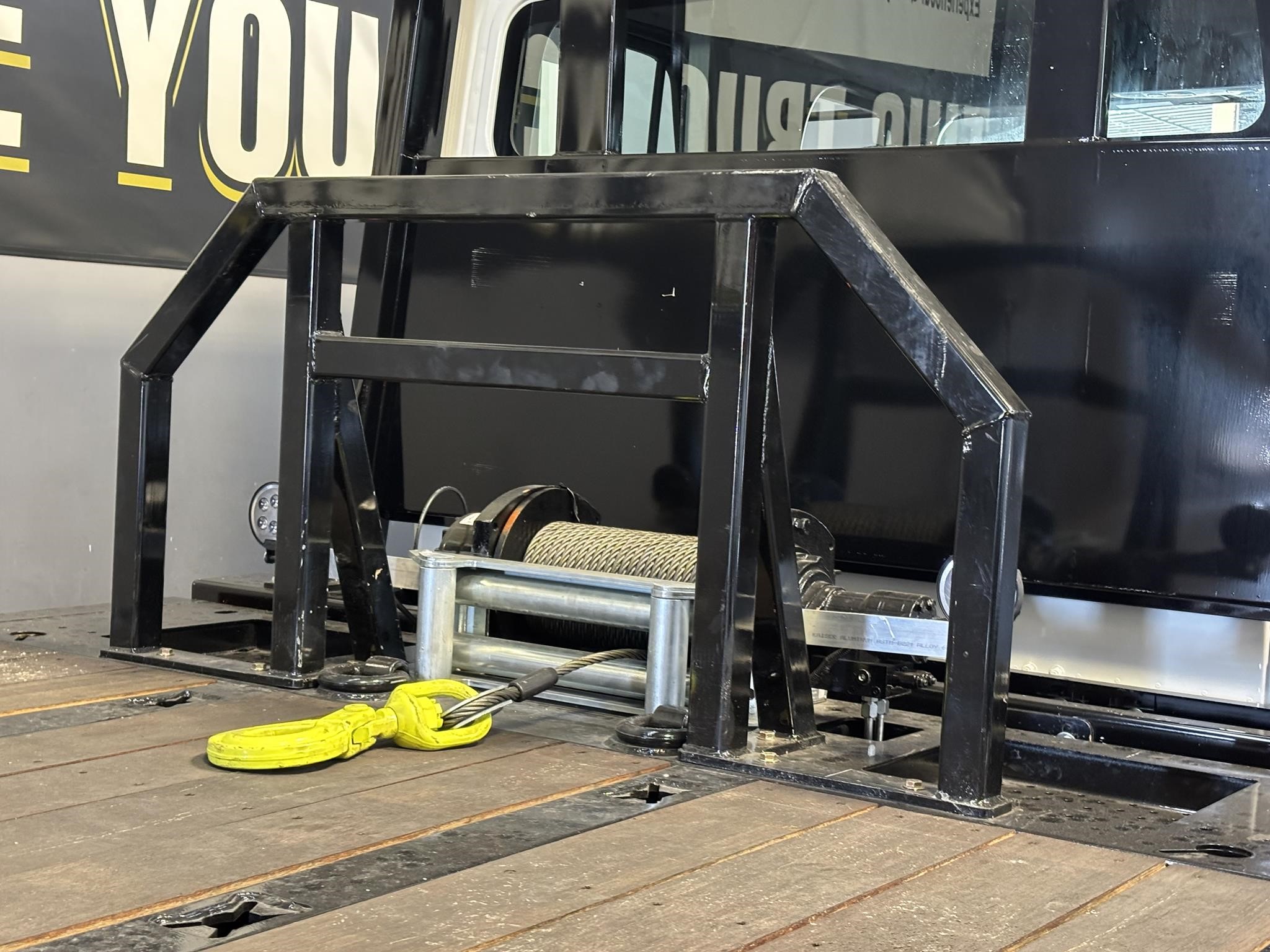

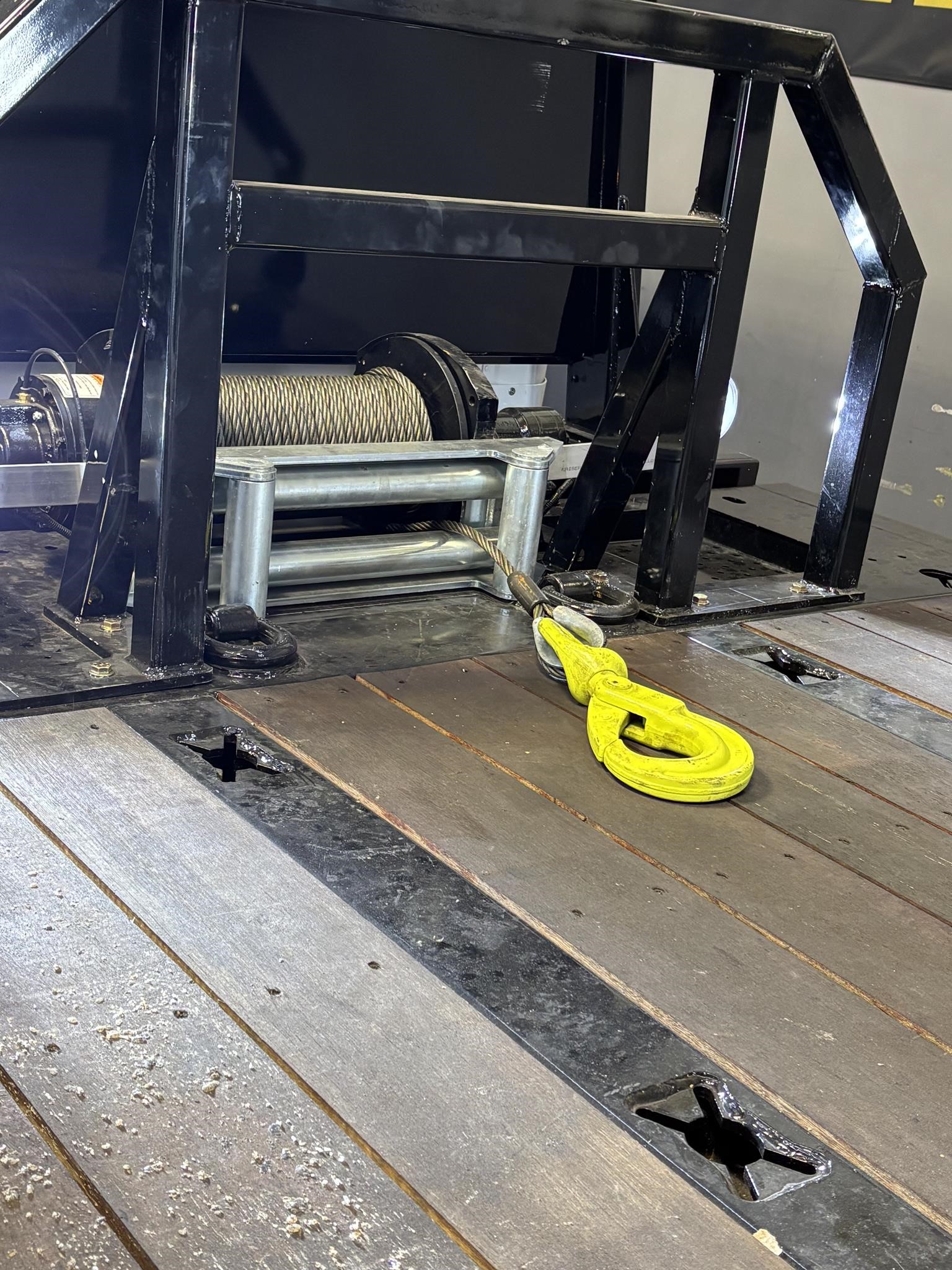

Back-Up Alarm, LED Lights. Hydraulic Dock Stabilizer. Hydraulic Pump, Mud Flaps, 7 Tie-Down Points (2 front, 5 rear), Federal Standard 108 Lighting, Floor Level Sides, w/Stake Pockets, 20,000 lb Planetary Winch, Two Front Safety Chains
3/16” Deck Plate, Bed Anti-Tilt Feature, Winch Air Clutch Release, Dual Tilt Cylinders, Cable Tensioner , Wood floor. -Pintle Hitch

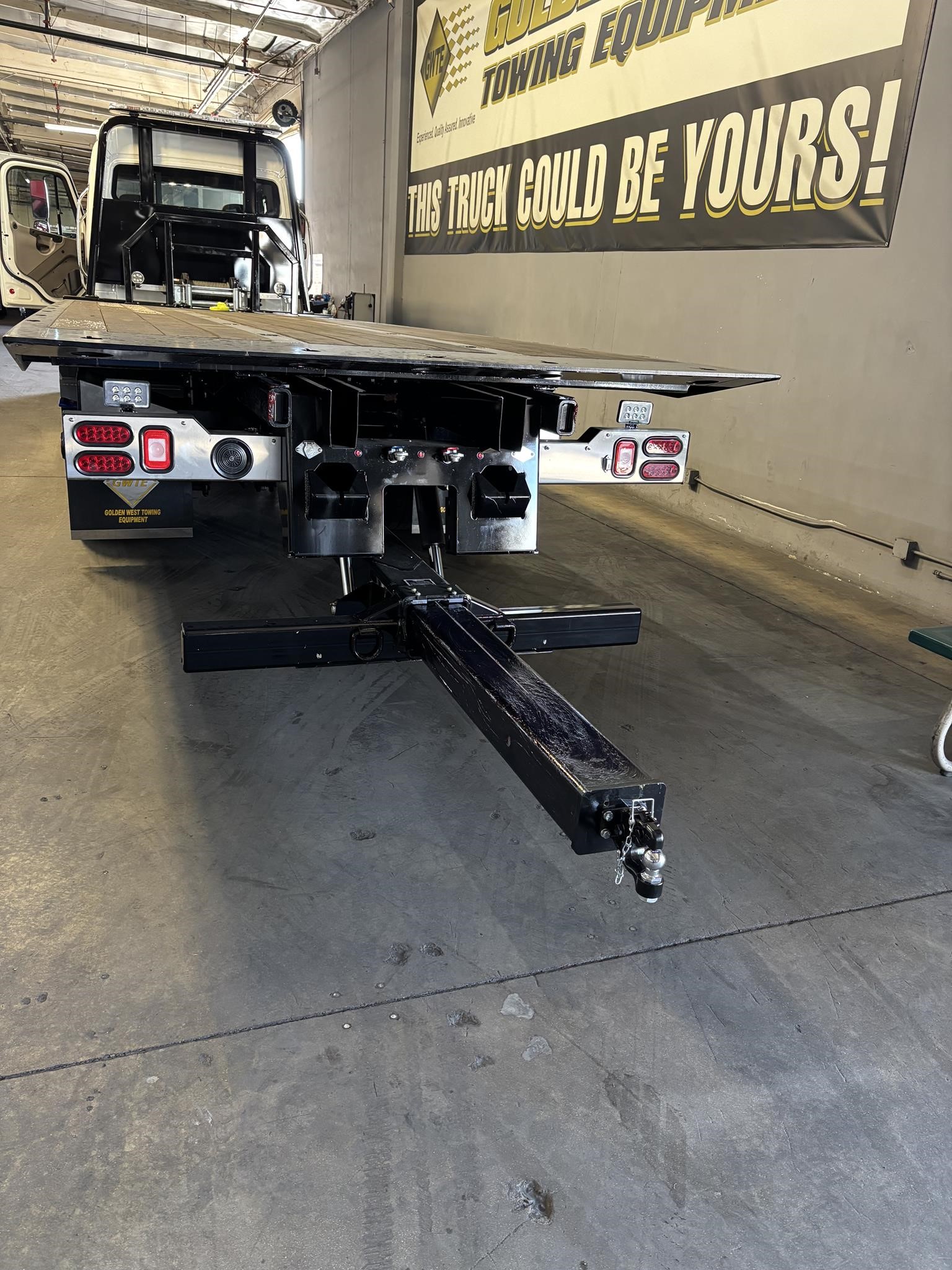

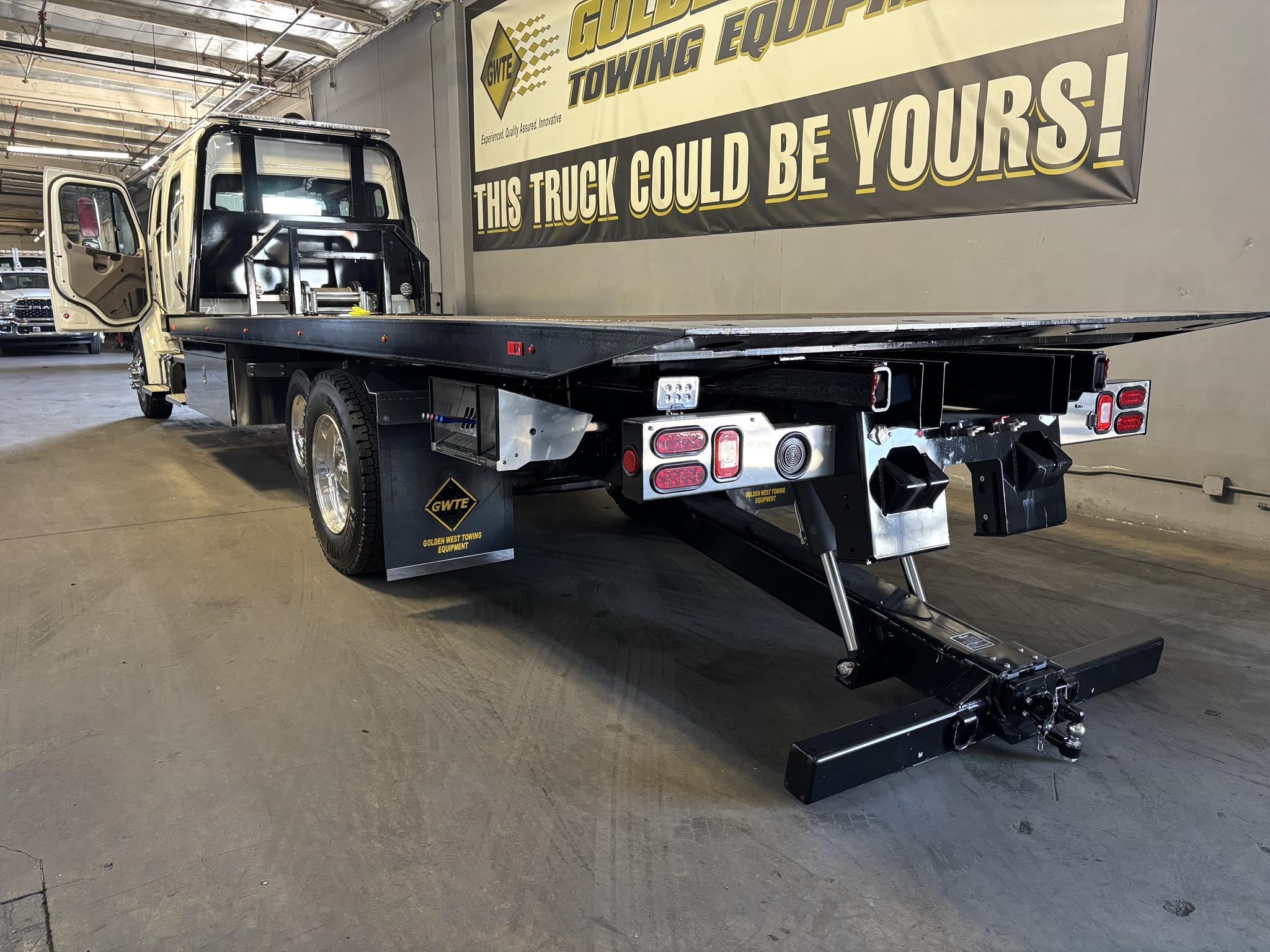

Combination Hydraulic Ext. Pintle & Dock Stabilizer
12,000lb Drop axle
