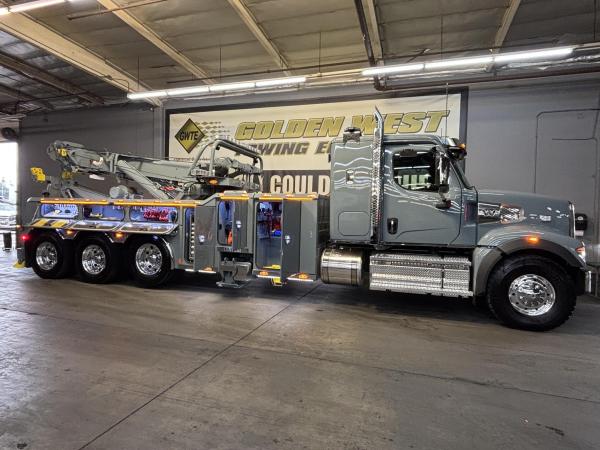

49X
All Wreckers
Equipment Overview
| Price | Contact for Price |
| Make | WESTERN STAR |
| Model | 49X |
| Year | 2025 |
| Stock # | 1001020463 |
| Location | Fullerton, CA |
Need Assistance?
(800) 222-4992Specifications
- A/C Condition: New
- Air Conditioning: Yes
- Axle: Tandem

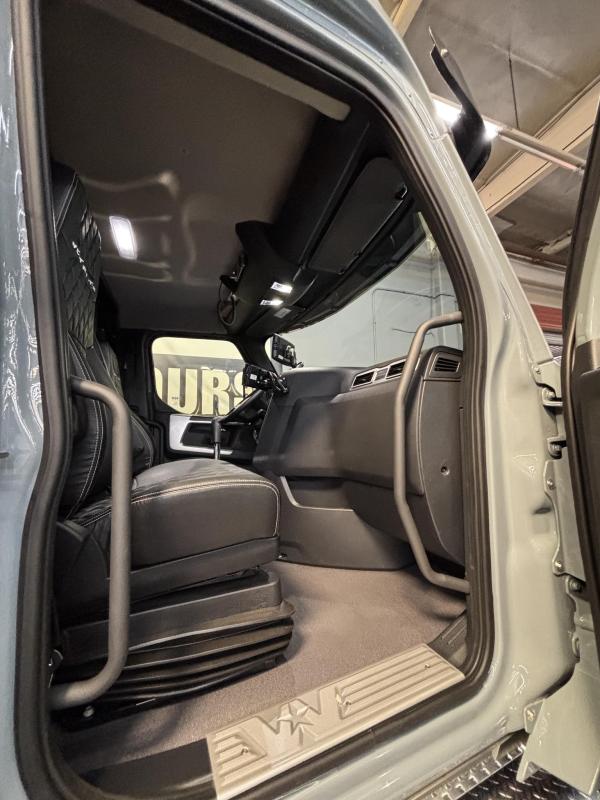

- Cab: Standard Cab
- Collisionmitigationsystem: No
- Color: Grey
- Cruise Control: Yes
- Drive: 4x2
- Driver Position: Left Hand Drive
- Dual Breathers: Yes
- Dual Exhuast: Yes
- Dually: Yes
- Engine Brake: Yes
- Exhaust Brake: No
- Front Axle Lbs: 20000
- FrontaxlelbsUnit: Pound
- Fuel Type: Diesel
- Glider Kit: No
- Gross Vehicle Weight: 86000
- Gross Vehicle Weight Rating: Class 8
- GrossvehicleweightUnit: Pound
- Hassleeper: Yes
- Headache Rack: No
- Heated Mirror: Yes
- Horsepower: 565
- HorsepowerUnit: Horsepower
- Hours Meter Inaccurate: 0
- Lift Axle: Yes
- Lift Axle Type: Mid

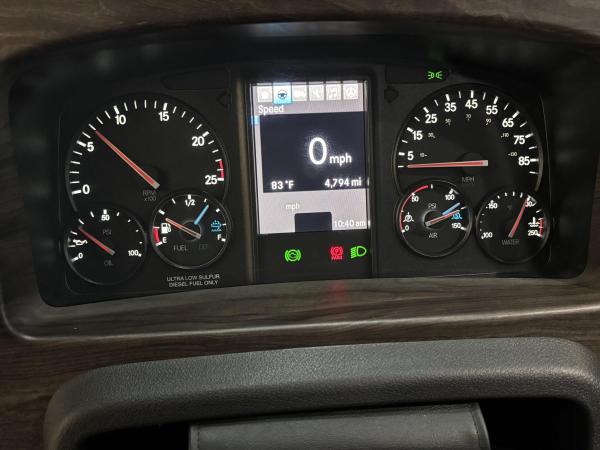

- Mileage: 5077
- MileageUnit: Mile
- Num Speeds: 18 Spd
- Numberofbeds: 1
- Overdrive: Yes
- Power Locks: Yes
- Power Steering: Yes
- Power Windows: Both
- Rear Axle Lbs: 46000
- RearaxlelbsUnit: Pound
- Sleeper: Flat Top Sleeper
- Sleeper Size: 36
- SleepersizeUnit: Inch
- Super Singles: No
- Suspension: Air Ride
- Tilt Telescope: Yes
- Tires: 11R 24.5
- Transmanufacturer: EATON-FULLER
- Transmission: Manual
- Turbo: Yes
- Wet Kit: No
- Wheels: Aluminum
General Description & Dealer Notes

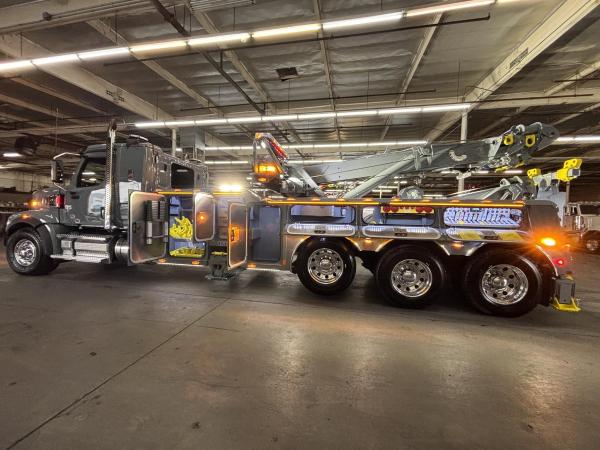

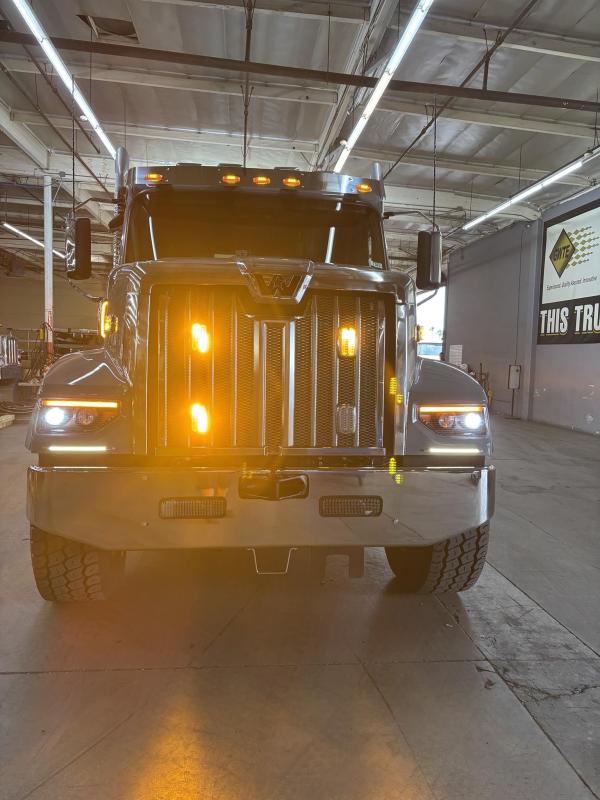

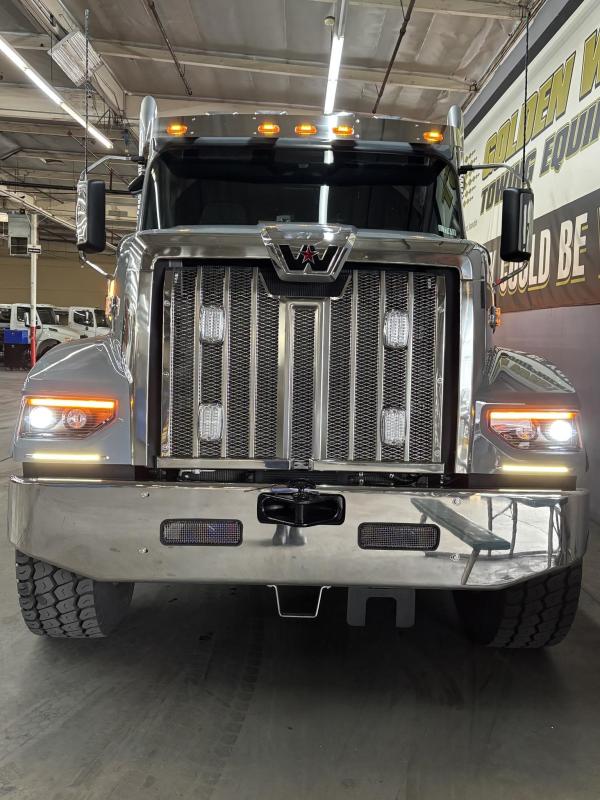

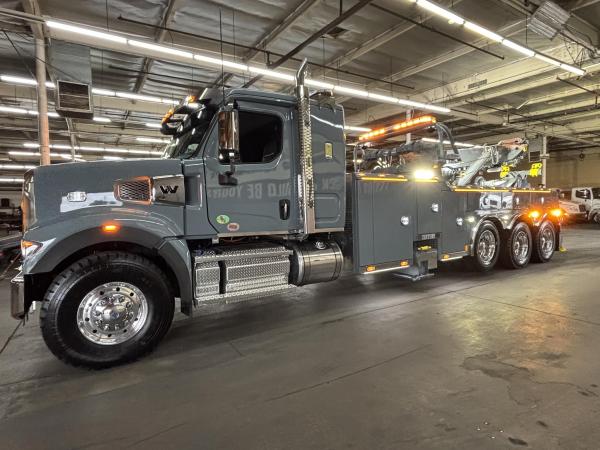

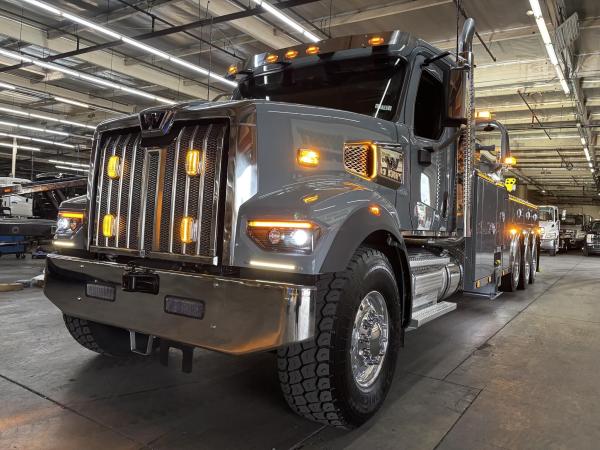

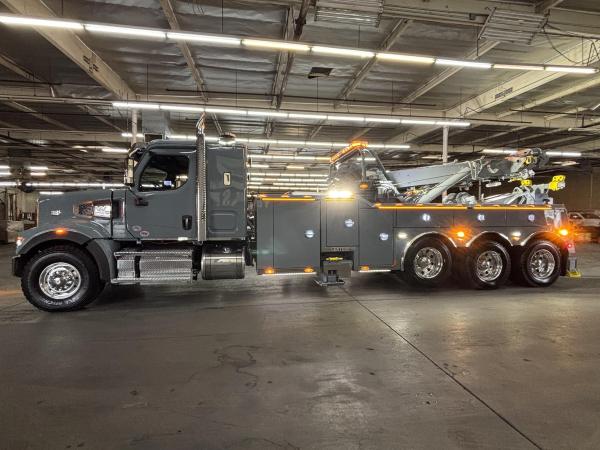

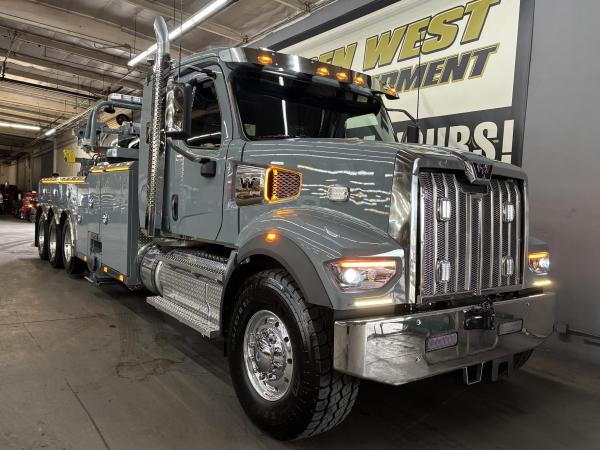

2025 Western Star 49X -121.5" BBC ALUMINUM CONVENTIONAL CAB DETROIT DD16 15.6L 600 HP @ 1800 RPM, 2080 GOV RPM, 2050 LB-FT @ EATON FULLER RTLO-20918B TRANSMISSION,1120 RPM, CRUISE CONTROL, BW LK-862 650CC 34.8 CFM DUAL CYLINDER AIR COMPRESSOR, JACOBS COMPRESSION BRAKE, BENDIX ADB22X AIR DISC FRONT BRAKES, DUAL HIGH CAPACITY POWER STEERING GEARS, BENDIX, 20-23K, 20,000# TAPERLEAF FRONT SUSPENSION, MERITOR RT-46-164 46,000# R-SERIES TANDEM REAR AXLE, 4.10 REAR AXLE RATIO, RPL25SD MERITOR MAIN DRIVELINE, DRIVER CONTROLLED TRACTION DIFFERENTIAL - BOTH TANDEM REAR AXLES, (1) INTERAXLE LOCK VALVE, (1) DRIVER CONTROLLED Differenial lock, Forward-rear axle valve, and (1) Rear-rear axle Valve, Bendix ADB22X Air Disc rear brakes, Airliner 46,000# Rear Suspension with chain with clearance, Hendrickson FM20 Touchlift 20,000# Non-Steer Pusher Suspension. N-Series drop center axle, HENDRICKSON FM20 Toughlift 20,000# NON-Steer Air lift axle
SUSPENSION. (1) DASH SWITCH, (1) GAUGE AND (1) AIR PRESSURE REGULATOR INSIDE CAB, WABCO TWIN AIR DRYER WITH HEATER.. ALUMINUM AIR BRAKE RESERVOIRS, Air connections to end of frame with glad hands for Truck with 36, Inches additional line end of frame, 15.0MM X 89.0MM X 315.0MM Steel Frame (0.59X3.5X12.4 INCH) 120 KSI, 36 INCH TRENCH STYLE Low rood Sleeper, bolt on molded flexiable fenders Extension , PDI installed stainless steel air intake, Screen Red LED Marker. Turn.
LIGHT BAR PAIR 47X/49X/57X - DIETER ABP-WSS564, X-SERIES POWER HOOD, FOUR HADLEY SD-978 26 INCH RECTANGULAR AIR HORNS. SWITCH AND WIRING WITH STAINLESS STEEL BRACKETS MOUNTED OUTBOARD
SLEEPER ROOF FOR (2) CUSTOMER FURNISHED BEACONS. (2) SWIVEL LED UTILITY LIGHTS MOUNTED HIGH LH AND RH BACK OF CAB, C-BAR MIRROR SYSTEM WITH DUAL HEATED MIRRORS WITH INTEGRAL HEATED
CONVEX, DUAL REMOTE, TURN SIGNAL, STAINLESS STEEL BACK COVER, & Bright C-bar Polished aluminum Diamond plate wst aftertreatment system cover., Bright Steel 5/16" Inch Several Duty Bumper.
Polishing of Fuel tanks with Polished stainless steel bands, polished step finish, Detroit Fuel/water separator, 12 Volt pre-heater, 425/65R22.5 20 PLY RADIAL FRONT TIRES. 11R24.5 16 PLY RADIAL REAR TIRES, STAINLESS STEEL EXTERIOR SUN VISOR WITH INTEGRAL MARKER LIGHTS

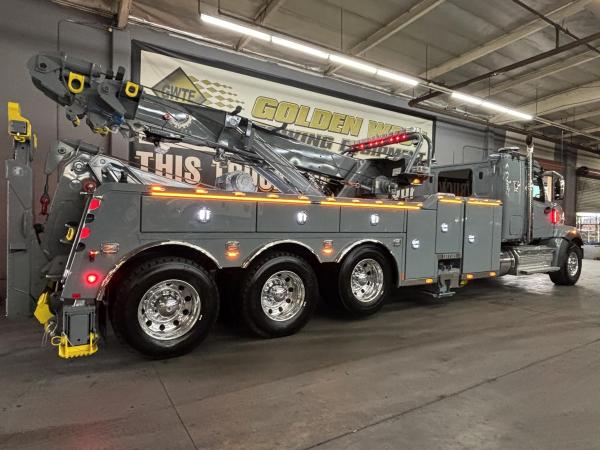

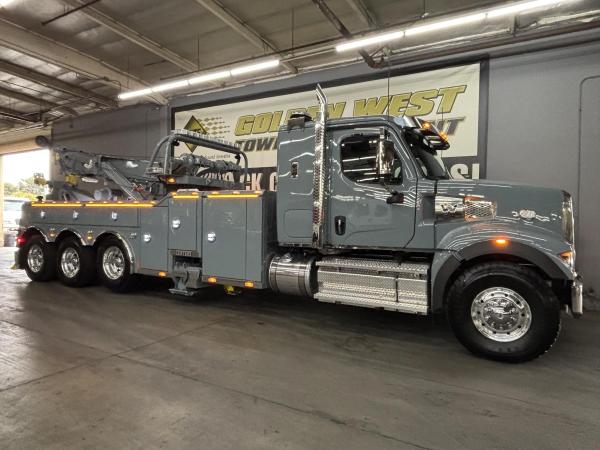

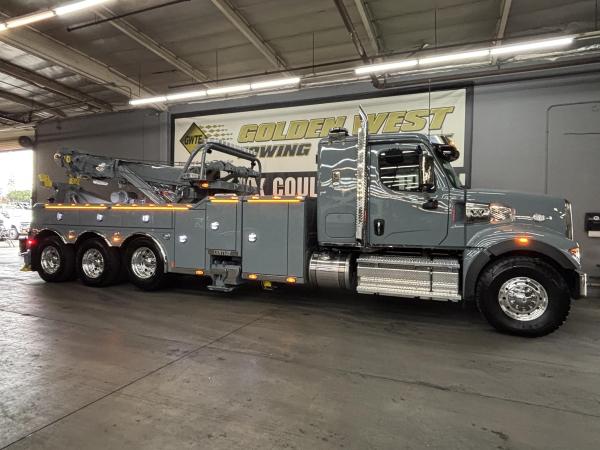

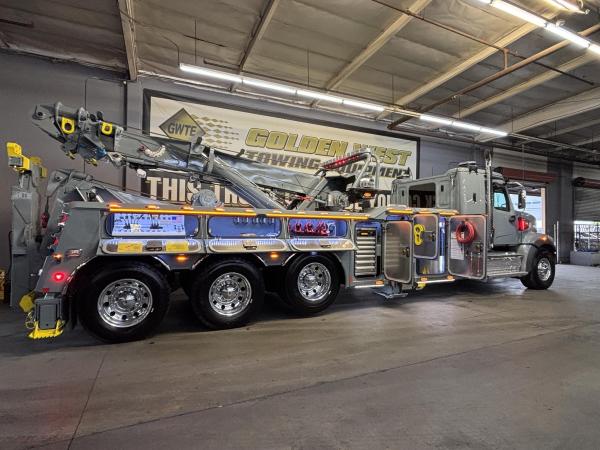

Century 1140R

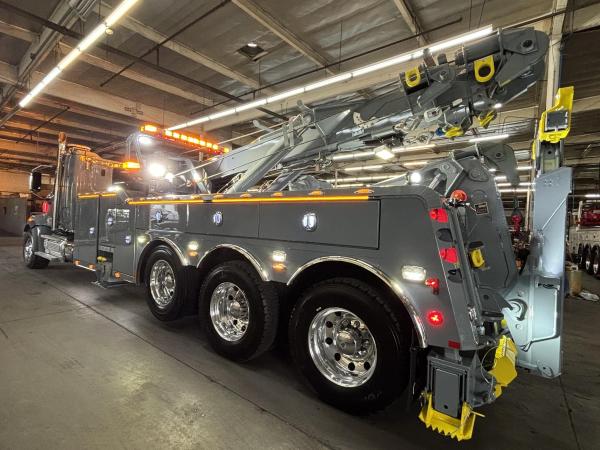

40 Ton Rotator

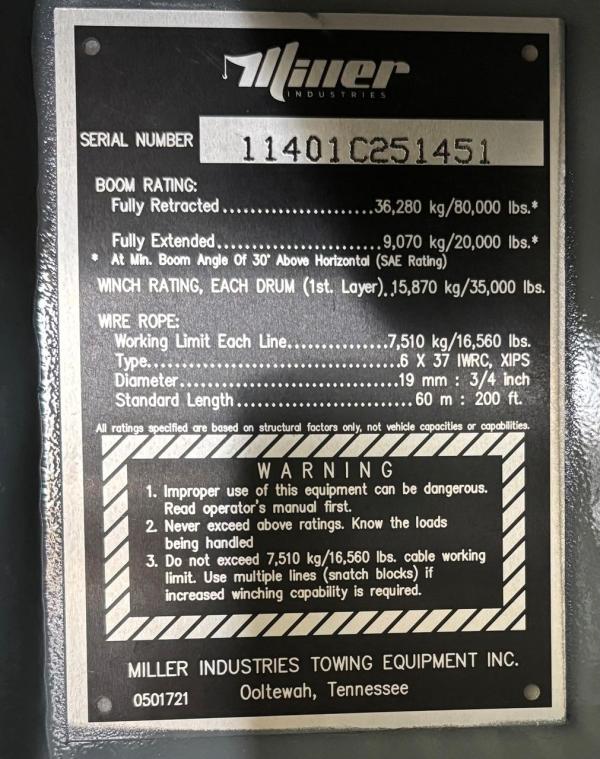

body Serial # 11401C251451
180" Tri Axle Body (40-75 ton)
3-Stage Low Front Outriggers (40-75 ton)
35,000 Lb. Drag Winch (30-75 ton)
48” Saddle Box

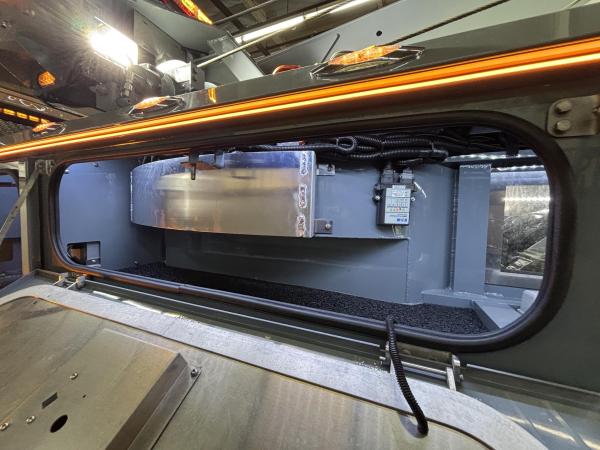

auto: Crossover/Tunnel Box
Dual 15,000 Turret Winches
Front H-Beam Side D Ring Kit
H-Beam Large Pad (Front Only)
Proportional Package
auto: Load Sensing
Rotator D-Ring Package

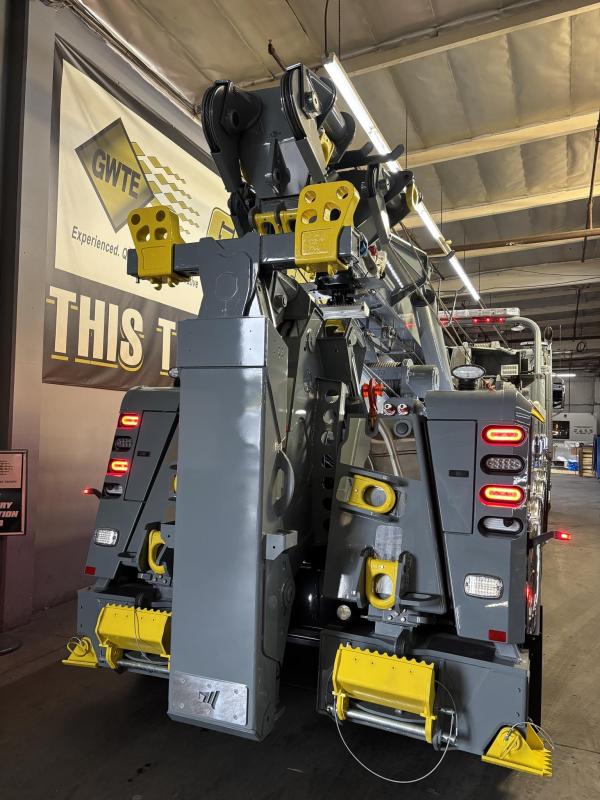

Rotator Knee Boom Street Low Rider (157" Reach)
Rotator Pylon (30-40 ton)
Accessories

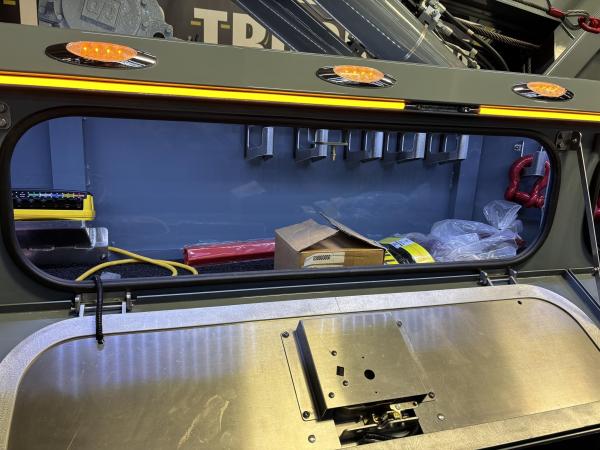

180" Rotator Tri Axle Dura Glow LED Strip Light
auto: LED Strip Light Kit
36”/48” Attachment Storage Kit
48” Fork Holder Storage Kit

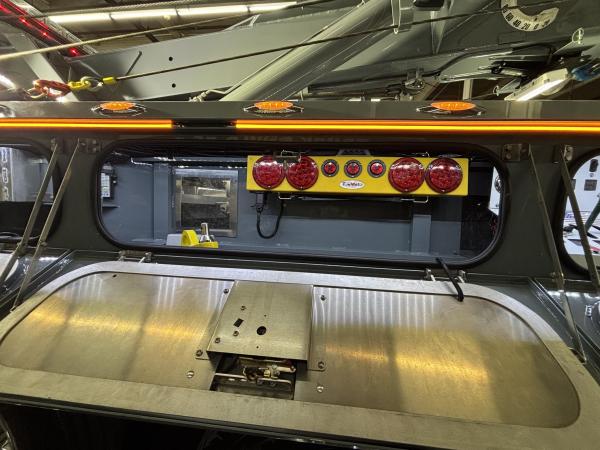

48” Tunnel Box - Dura Glow LED Strip Lights
auto: LED Strip Light Kit
6 3/4” Curved Fork
A/C Inverter Kit (HD)
auto: Inverter Kit Install
Color Control Handle Kit
Double Action PTO Manual Override (Rotator)
auto: PTO Manual Override - HD
Dual Hole Tie Down Kit
Dual Reverse Camera with Monitor
auto: Dual Camera System
Endless Loop Sling Kit

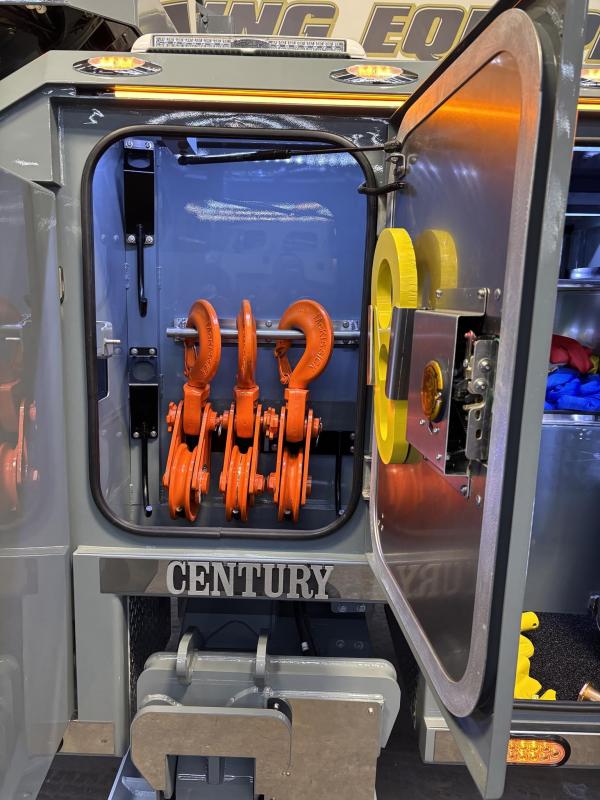

Evolution Snatch Block - 15 Ton
Evolution Snatch Block - 8 Ton
Fifth Wheel Plate (Requires Pintle 124002211)
Fifth Wheel Plate Storage Bracket
** AutoInstall issues **
Front Axle Cover Kit (Pair) 2024
H Beam Stainless Dress Up Kit

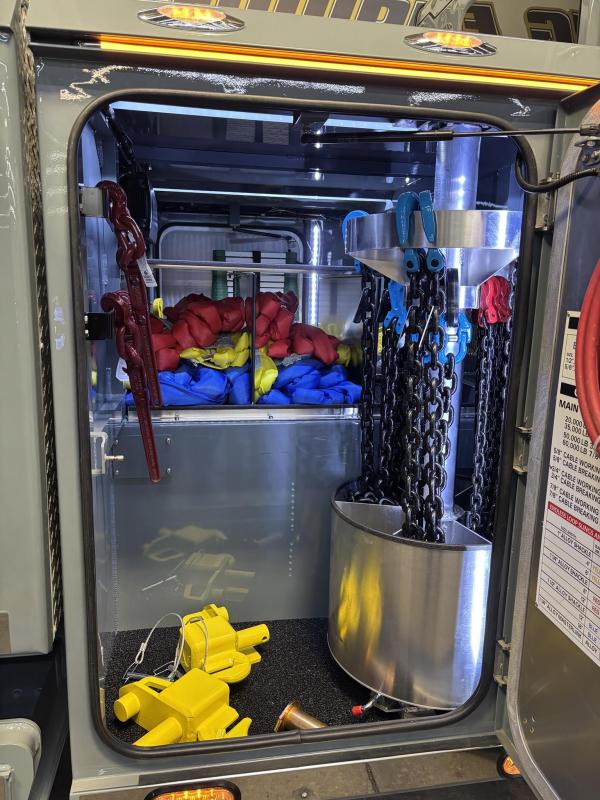

HD Chain Kit - Comprehensive
King Pin Tow Plate Storage Bracket
King Pin Tow Plate/Trailer Recovery Loop
Knee Boom Tailboard Polished Stainless Dress Up Kit
auto: Tailboard Dress Up Kit
LED - Flashing Warning Door Light Kit

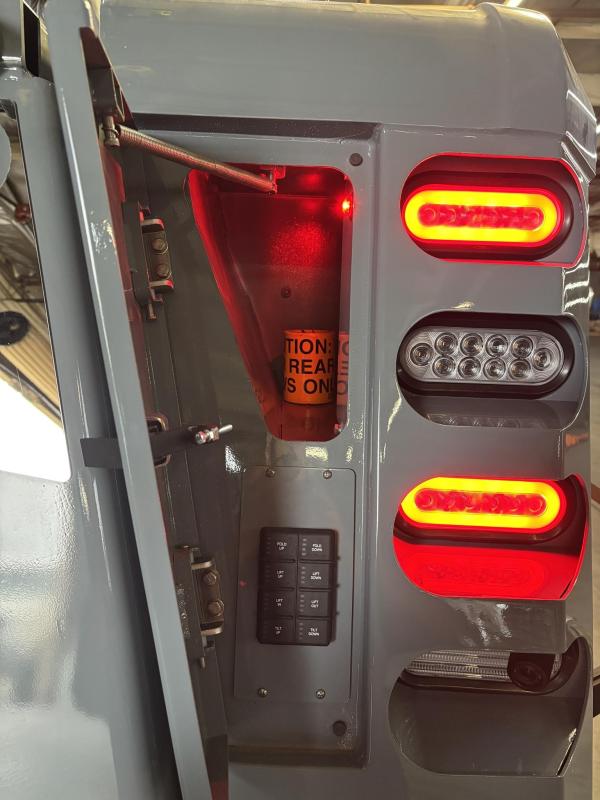

LED - Flex Lamp Rear Marker Lights (pair)
auto: Work Lights (Pair)
LED - Under Body Strip Light Kit(12V)
auto: LED Strip Light Kit
LED - Work Lights - Lower 70MM (Pair)
auto: Work Lights (Pair)
LED - Work Lights - Swivel 90MM (Pair)
auto: Work Lights (Pair)
LED - Work Lights - Underlift (Pair)
auto: Work Lights (Pair)
LED - Work Lights - Upper 90MM (Pair)
auto: Work Lights (Pair)

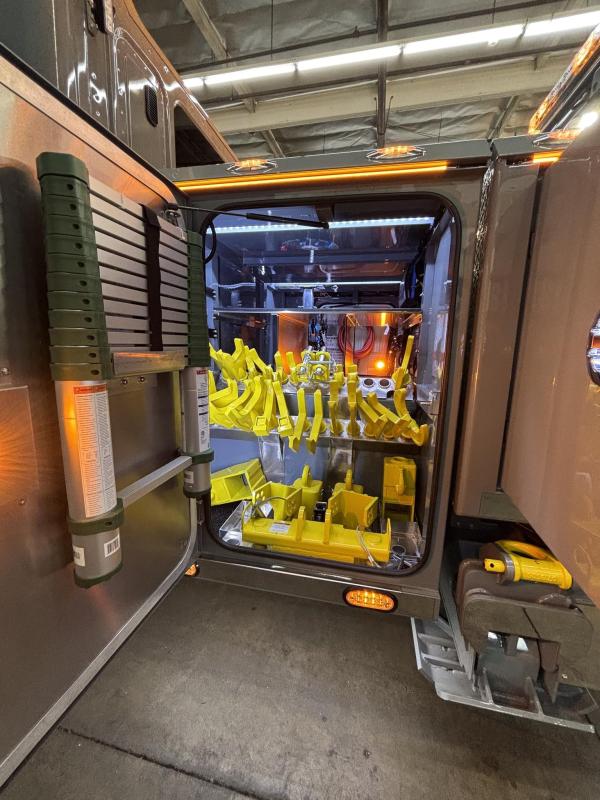

Ladder Kit, 12.5' Telescoping
Lumitec LED H120
auto: 2 * Work Lights (Single)
Lumitec Motorized Boom Lamp Kit
auto: Boom Light (Motorized) Install
MCI Bus Lift Eye Attachments (Pair)
Millenium Marker Light
Muncie Electric/Air Shift PTO (8 Bolt, Rotator, HD)
auto: Electric / Air Shift PTO - HD, CC
Offset Chain Hook Adapters V2 (Dual Fork Holders)
Pintle Hook Attachment
Razor 10K Flood Light (Each)
auto: 2 * Work Lights (Single)
Rear Axle Cover Kit (Pair) 2024

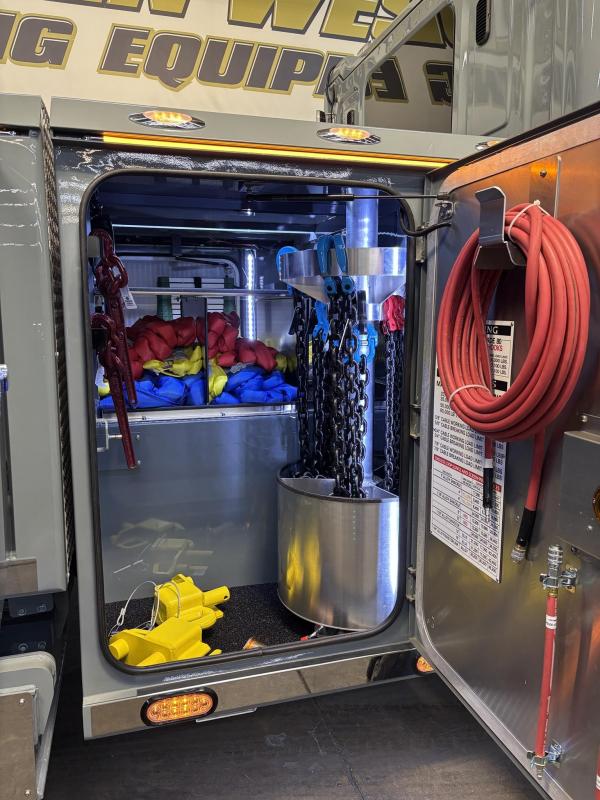

Rotating Chain Rack Kit
auto: Chain Rack Install
Rotator Choker and Storage Kit
Seamless Toolbox Matting - Black (HD)
auto: Toolbox Mat

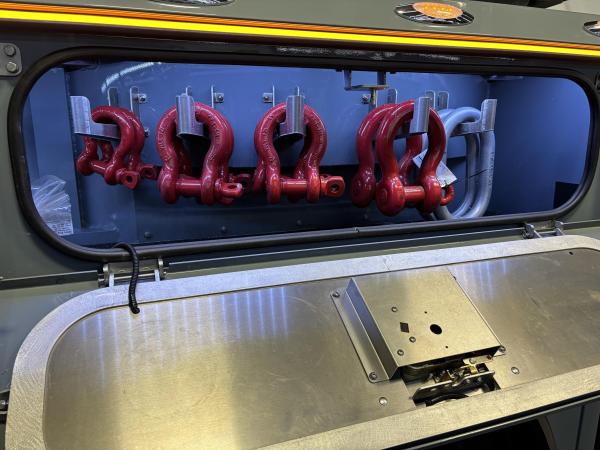

Shackle Hanger Kit
Shackle Hanger Kit - Bolt On (Rotator)
Shackle Kit
Snatch Block Rack Kit 2020
auto: Snatch Block Storage Kit (Each)
Spacer Kit-Cast Fork
Stainless Steel Wheel Trim
auto: 6 * Stainless Fenderettes (Each)
Stainless Trim Kit (Rotator)
auto: Stainless Door Guard (Pair)

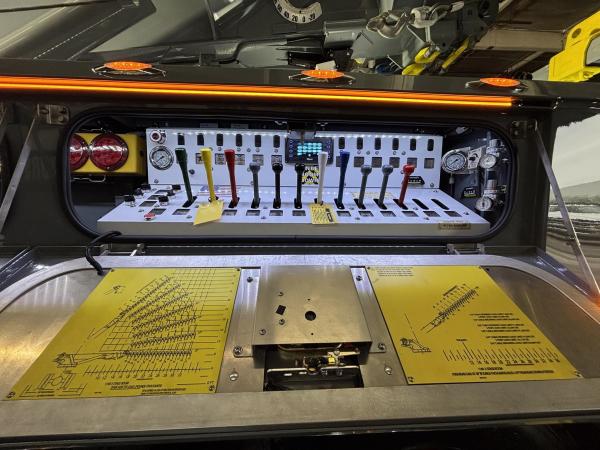

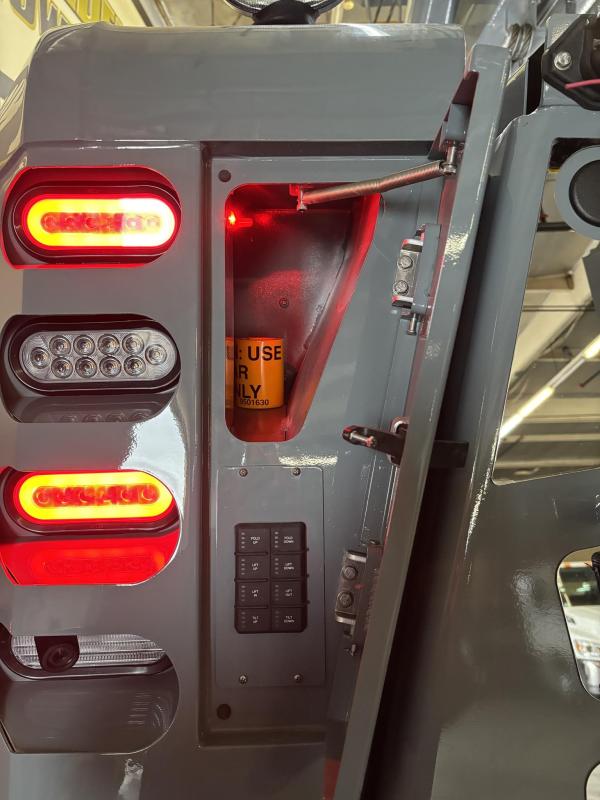

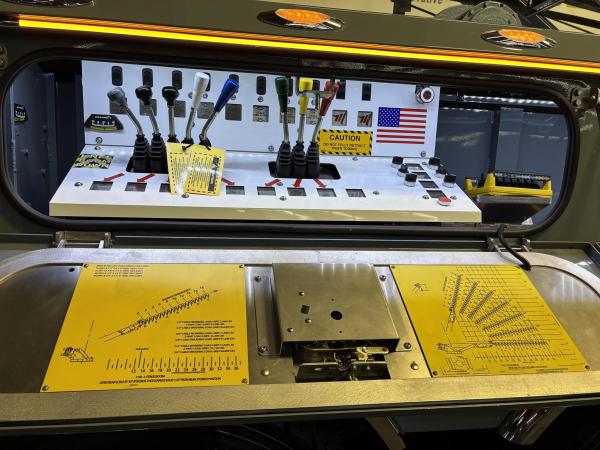

Tailboard Control Panel
auto: Tailboard Remote

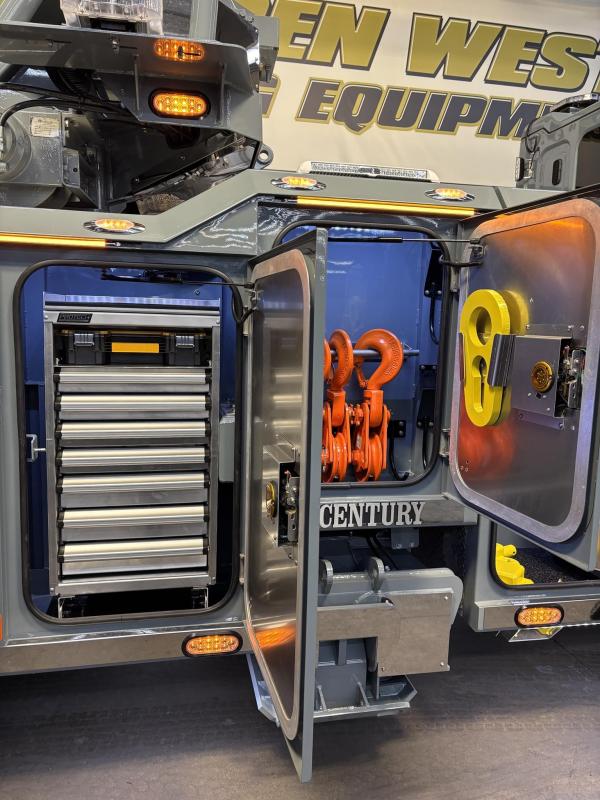

Tool Cabinet - 7 Drawer With Removable Storage Tray
auto: Tool Cabinet Install
Tow Bar Light - 36" - Wireless
Trailer Ball Attachment (requires 124002211)
Trailer Converter Ball Kit
U Bolt Lift Attachments (Pair)
Underlift Tie Down Straps
Volvo Fork
Whelen 10”x10” Lights w/o Brackets
auto: Strobe Light Kit (Mini or Whelen 10x10s)
Whelen 16 Head LC LED Light Bar - 72"
auto: Strobe Light Kit (Mini or Whelen 10x10s)
auto: Light Bar - 72" / HD
Whelen M6 Light Kit - Cab (Pair)
auto: 4 * M6 Lights (Pair Cab Mounted)
Whelen M6V Series Light Kit - Body (Pair)
auto: 4 * LED / M6 Lights (Pair Body Mounted)
Winch Bucket Dress Up Kit (40 ton)
auto: Winch Bucket Dress Up Kit
Installation
1140 / 940
Axle Cover & Lugs (Single or Tandem)
Boom Light (Motorized) Install
Carousel / Chain Rack
Crossover/Tunnel Box
Dual Camera System
Electric / Air Shift PTO - HD, CC
Inverter Kit Install
LED / M6 Lights (Pair Body Mounted)
LED Strip Light Kit
Lift Axle Cover
Light Bar - 72" / HD
Load Sensing
M6 Lights (Pair Cab Mounted)
PTO Manual Override - HD
Shelf Kits (HD)
Snatch Block Storage Kit (Each)
Stainless Door Guard (Pair)
Stainless Fenderettes (Each)
Strobe Light Kit (Mini or Whelen 10x10s)
Tailboard Dress Up Kit
Tailboard Remote
Tool Cabinet Install
Toolbox Mat
Winch Bucket Dress Up Kit
Work Lights (Pair)
Work Lights (Single)
Paint
1 - Color Single Steer Body (Rotator)
2 - Optional Two Color Center Section (30 and 40 ton)
Color Coded Sheave Heads
Paint Pylon
DAA
HD: Air Weigh Scale System, Tandem Axle, Bonus Purple
Notes
CLEAR COAT ADDED AT MILLER
.
